Components [11/2022 - ]
WARNING: This page is about a different car, the 2025 Toyota GR Corolla, 2024 Toyota GR Corolla, and 2023 Toyota GR Corolla. However, it is still accessible from the selected car via links, so may be relevant.
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

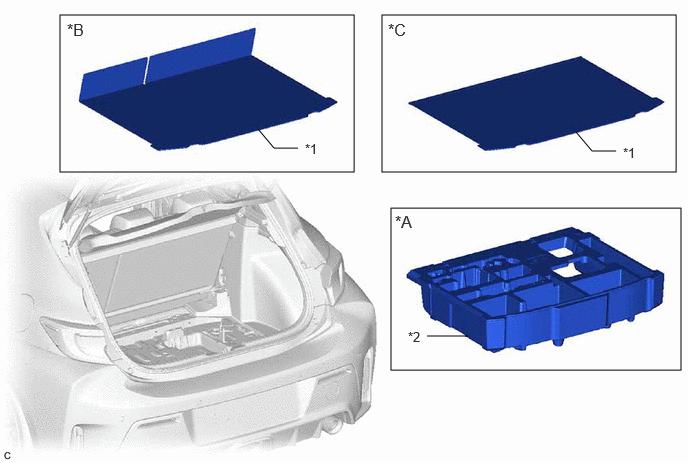

| Callout |
Description |
Callout |
Description |
| *A |
for Type A |
*B |
w/ Rear Seat Assembly |
| *C |
w/o Rear Seat Assembly |
- |
- |
| *1 |
DECK BOARD ASSEMBLY |
*2 |
SPARE WHEEL CUSHION |
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

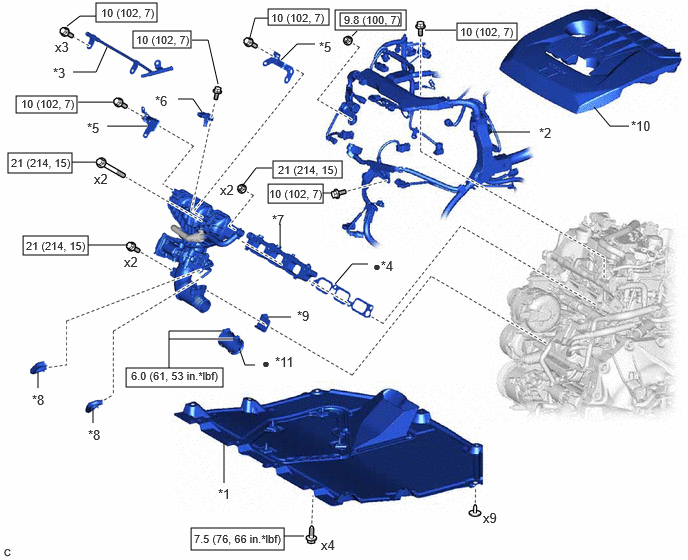

| Callout |
Description |
Callout |
Description |
| *1 |
NO. 1 ENGINE UNDER COVER ASSEMBLY |
*2 |
ENGINE WIRE |
| *3 |
NO. 4 WATER BY-PASS PIPE |
*4 |
NO. 1 INTAKE MANIFOLD TO HEAD GASKET |
| *5 |
WIRE HARNESS CLAMP BRACKET |
*6 |
NO. 1 REMOVE TURBO PRESSURE SENSOR |
| *7 |
NO. 1 VENTILATION FLANGE SEPARATOR |
*8 |
WATER BY-PASS HOSE |
| *9 |
INTAKE AIR CONNECTOR BRACKET |
*10 |
NO. 1 ENGINE COVER SUB-ASSY |
| *11 |
NO. 5 AIR HOSE |
- |
- |
|
Tightening torque for "Major areas involving basic vehicle performance such as moving/turning/stopping": N*m (kgf*cm, ft.*lbf) |
|
N*m (kgf*cm, ft.*lbf): Specified torque |
| • |
Non-reusable part |
- |
- |
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

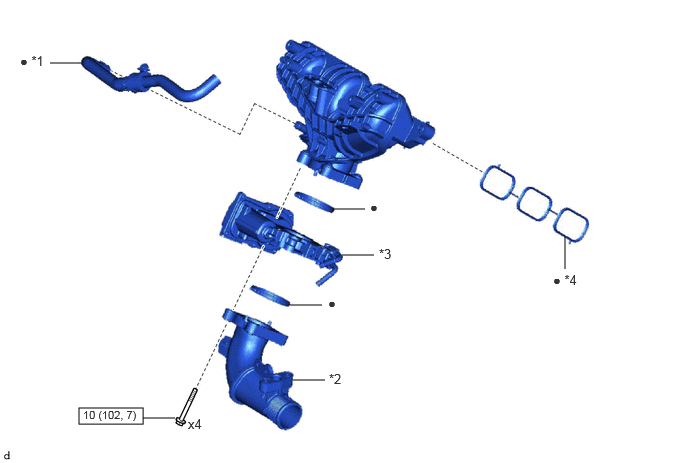

| Callout |
Description |
Callout |
Description |
| *1 |
NO. 1 FUEL VAPOR FEED HOSE |
*2 |
AIR TUBE ASSEMBLY |
| *3 |
THROTTLE W/ THROTTLE POSITION SENSOR BODY ASSEMBLY |
*4 |
MANIFOLD TO CYLINDER HEAD GASKET |
| *5 |
INTAKE MANIFOLD |
- |
- |
|
N*m (kgf*cm, ft.*lbf): Specified torque |
• |
Non-reusable part |
