Removal [09/2022 - 11/2022]: Procedure

WARNING: This page is about a different car, the 2025 Toyota GR Corolla, 2024 Toyota GR Corolla, and 2023 Toyota GR Corolla. However, it is still accessible from the selected car via links, so may be relevant.
  1. REMOVE CENTER ENGINE UNDER COVER

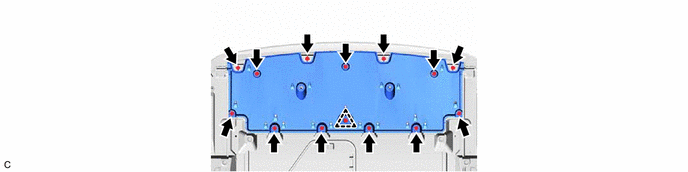

    1. GTY1105441Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      1. Remove the clips, 4 bolts and 9 screws.
  2. REMOVE HEADLIGHT ASSEMBLY LH

    Refer to REMOVAL [09/2022 - ]

  3. REMOVE HEADLIGHT ASSEMBLY RH

    HINT:

    Perform the same procedure as for the LH side.

  4. REMOVE FRONT BUMPER ENERGY ABSORBER

    Refer to PROCEDURE - Step 26

  5. REMOVE FRONT LOWER BUMPER ABSORBER

    Refer to PROCEDURE - Step 31

  6. REMOVE FRONT BUMPER REINFORCEMENT SUB-ASSEMBLY

    Refer to PROCEDURE - Step 28

  7. REMOVE NO. 2 FRONT BUMPER REINFORCEMENT

    Refer to PROCEDURE - Step 32

  8. REMOVE HOOD LOCK ASSEMBLY

    Refer to PROCEDURE - Step 5

  9. REMOVE NO. 3 AIR CLEANER INLET

    Refer to PROCEDURE - Step 4

  10. REMOVE INLET NO. 1 AIR CLEANER

    Refer to PROCEDURE - Step 6

  11. REMOVE UPPER RADIATOR SUPPORT SUB-ASSEMBLY

    Refer to PROCEDURE - Step 12

  12. REMOVE INTERCOOLER PLATE
    1. GTY1103485Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  13. REMOVE NO. 1 RADIATOR AIR GUIDE LH
    1. GTY1108418Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  14. REMOVE NO. 1 RADIATOR AIR GUIDE RH
    1. GTY1103480Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  15. DISCONNECT NO. 3 AIR HOSE
    1. GTY1108424Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  16. DISCONNECT NO. 4 AIR HOSE
    1. GTY1103507Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  17. REMOVE INTERCOOLER ASSEMBLY
    1. GTY1103508Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
