Removal [09/2022 - ]: Procedure
WARNING: This page is about a different car, the 2025 Toyota GR Corolla, 2024 Toyota GR Corolla, and 2023 Toyota GR Corolla. However, it is still accessible from the selected car via links, so may be relevant.
- REMOVE EXHAUST PIPE GAS CONTROL ACTUATOR SUB-ASSEMBLY
Refer to REMOVAL [09/2022 - ]

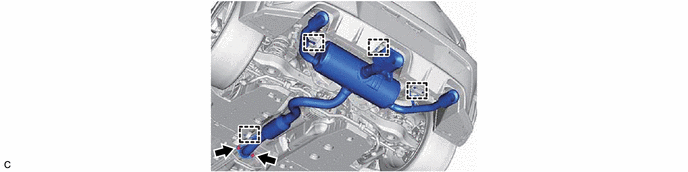

- REMOVE TAIL EXHAUST PIPE ASSEMBLY WARNING:
To prevent burns, do not touch the engine, exhaust pipe or other high temperature components while the engine is hot.

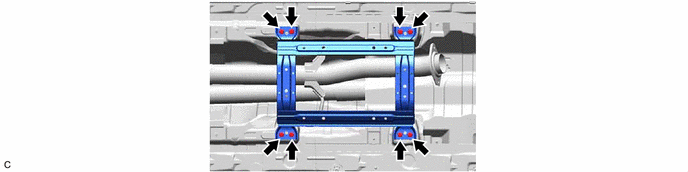

- REMOVE FRONT CENTER FLOOR BRACE
- REMOVE FRONT FLOOR COVER LH

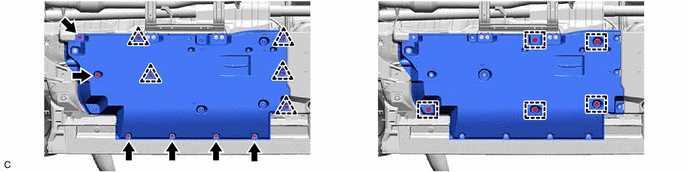

- Remove the 5 clips, 2 bolts and 4 screws.
- Turn the clip and remove the front floor cover LH from the vehicle body.NOTE:
If the clip is not turned when the front floor cover LH is removed, the front floor cover LH or stud bolt may be damaged.
HINT:
Do not remove the clip from the front floor cover LH.
- REMOVE FRONT FLOOR COVER RH

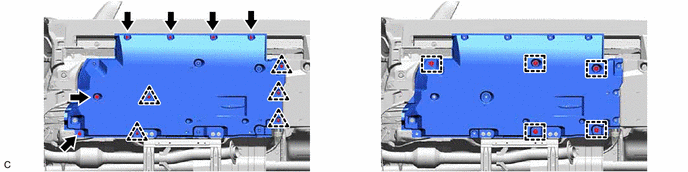

- Remove the 5 clips, 2 bolts and 4 screws.
- Turn the clip and remove the front floor cover RH from the vehicle body.NOTE:
If the clip is not turned when the front floor cover RH is removed, the front floor cover RH or stud bolt may be damaged.
HINT:
Do not remove the clip from the front floor cover RH.

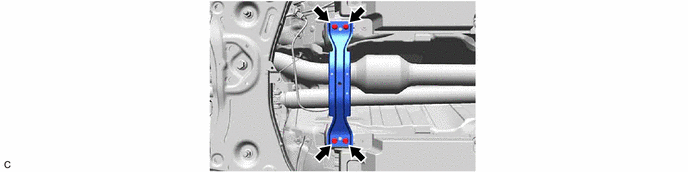

- REMOVE NO. 1 CENTER FLOOR BRACE
- REMOVE AIR FUEL RATIO SENSOR
Refer to PROCEDURE - Step 2

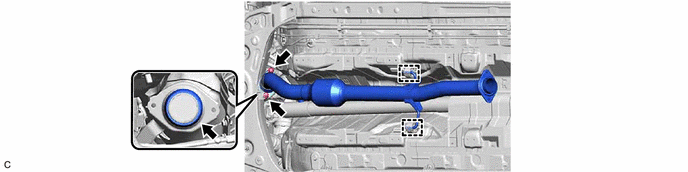

- REMOVE FRONT EXHAUST PIPE ASSEMBLY WARNING:
To prevent burns, do not touch the engine, exhaust pipe or other high temperature components while the engine is hot.
