Parts Location [01/2019 - 09/2022]: Illustration

WARNING: This page is about a different car, the 2022 Toyota Corolla, 2021 Toyota Corolla, and 2020 Toyota Corolla. However, it is still accessible from the selected car via links, so may be relevant.

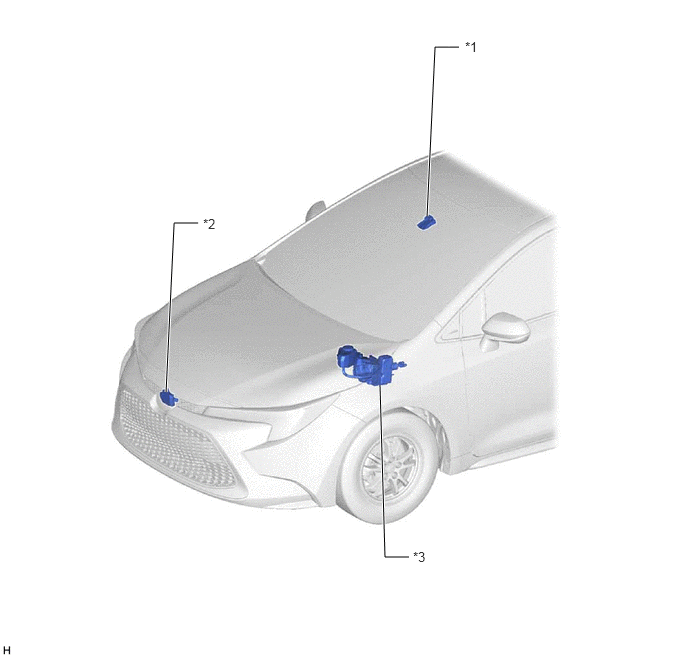

GTY895365Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
*1 FORWARD RECOGNITION CAMERA *2 MILLIMETER WAVE RADAR SENSOR ASSEMBLY
*3 BRAKE BOOSTER WITH MASTER CYLINDER ASSEMBLY
- SKID CONTROL ECU		 - -

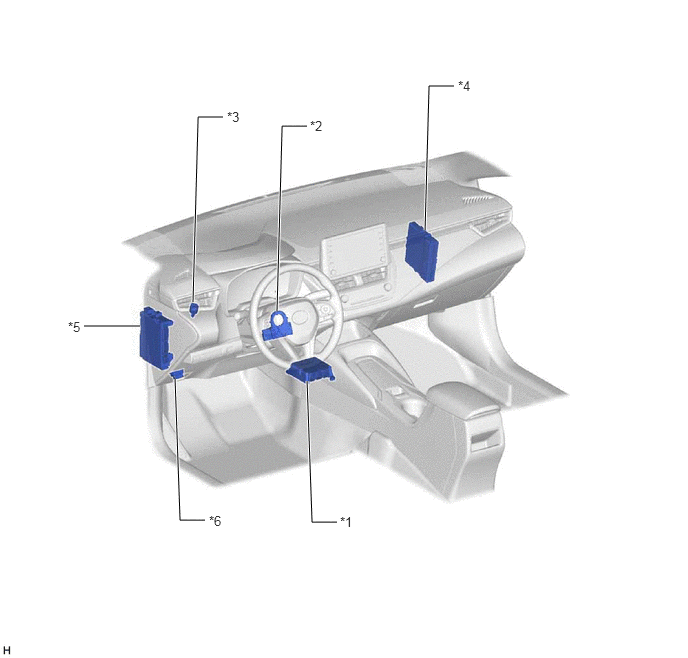

GTY914176Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
*1 AIRBAG SENSOR ASSEMBLY
- YAW RATE SENSOR		 *2 STEERING SENSOR
*3 STOP LIGHT SWITCH ASSEMBLY *4 HYBRID VEHICLE CONTROL ECU
*5 INSTRUMENT PANEL JUNCTION BLOCK ASSEMBLY
- ECU-IG1 NO. 4 FUSE		 *6 DLC3
