DTC B242F: Open in B Power Line [06/2018 - 09/2022]: Procedure

WARNING: This page is about a different car, the 2022 Toyota Corolla, 2021 Toyota Corolla, 2020 Toyota Corolla, and 2019 Toyota Corolla. However, it is still accessible from the selected car via links, so may be relevant.
  1. CLEAR DTC
    1. Connect the Techstream to the DLC3.
    2. Turn the engine switch on (IG).
    3. Turn the Techstream on.
    4. Enter the following menus: Body Electrical / AFS or AFS (Sub) / Trouble Codes.
    5. Clear the DTCs.

      Body Electrical > AFS > Clear DTCs

      Body Electrical > AFS (Sub) > Clear DTCs

      Result

      Proceed to
      NEXT

    Result:

    NEXT

    See step  2

  2. CHECK FOR DTC
    1. Connect the Techstream to the DLC3.
    2. Turn the engine switch on (IG).
    3. Wait 10 seconds or more.
    4. Turn the Techstream on.
    5. Enter the following menus: Body Electrical / AFS or AFS (Sub) / Trouble Codes.
    6. Check for DTCs.

      Body Electrical > AFS > Trouble Codes

      Body Electrical > AFS (Sub) > Trouble Codes

      OK

      DTC B242F is not output.

      Result

      Result Proceed to
      OK A
      NG (DTC output from headlight ECU sub-assembly LH) B
      NG (DTC output from headlight ECU sub-assembly RH) C

    Result:

    A

    USE SIMULATION METHOD TO CHECK. Refer to  HOW TO PROCEED WITH TROUBLESHOOTING [06/2018 - ]

    Result:

    C

    See step  11

    Result:

    B

    See step  3

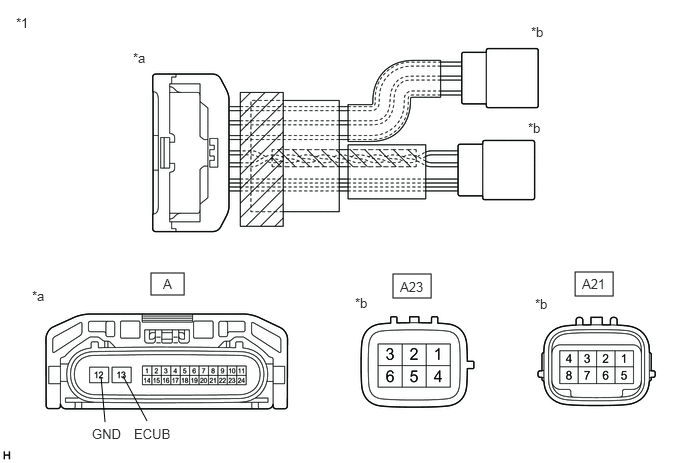

  3. INSPECT HEADLIGHT UNIT ASSEMBLY LH (HEADLIGHT CORD)
    GTY939901Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    *1 Headlight Unit Assembly LH (Headlight Cord) - -
    *a Component without harness connected
    (to Headlight ECU Sub-assembly LH)    		 *b Component without harness connected
    (to Wire Harness)
    1. Remove the headlight unit assembly LH.

      Refer to DISASSEMBLY [06/2018 - 01/2019] , or refer to DISASSEMBLY [01/2019 - 03/2019] , or refer to DISASSEMBLY [03/2019 - 09/2022]

    2. Measure the resistance according to the value(s) in the table below.

      Standard Resistance

      Tester Connection Condition Specified Condition
      A23-1 - A-13 (ECUB) Always Below 1 Ω
      A23-4 - A-12 (GND) Always Below 1 Ω

      Result

      Proceed to
      OK
      NG

    Result:

    NG

    REPLACE HEADLIGHT UNIT ASSEMBLY LH. Refer to  DISASSEMBLY [06/2018 - 01/2019]  , or refer to  DISASSEMBLY [01/2019 - 03/2019]  , or refer to  DISASSEMBLY [03/2019 - 09/2022]

    Result:

    OK

    See step  4

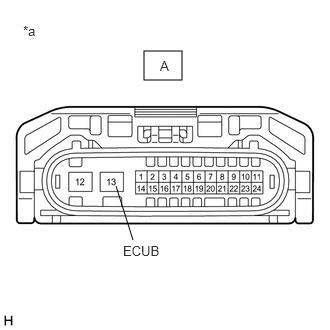

  4. INSPECT HEADLIGHT ECU SUB-ASSEMBLY LH (ECUB TERMINAL VOLTAGE)
    GTY875841Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    *a Front view of wire harness connector
    (to Headlight ECU Sub-assembly LH)
    1. Disconnect the A headlight ECU sub-assembly LH connector.
    2. Connect the A23 headlight unit assembly LH connector.
    3. Measure the voltage according to the value(s) in the table below.

      Standard Voltage

      Tester Connection Condition Specified Condition
      A-13 (ECUB) - Body ground Engine switch on (IG) 9.5 to 14 V

      Result

      Proceed to
      OK
      NG

    Result:

    NG

    See step  6

    Result:

    OK

    See step  5

  5. CHECK HARNESS AND CONNECTOR (HEADLIGHT ECU SUB-ASSEMBLY LH - BODY GROUND)
    1. Measure the resistance according to the value(s) in the table below.

      Standard Resistance

      Tester Connection Condition Specified Condition
      A-12 (GND) - Body ground Always Below 1 Ω

      Result

      Proceed to
      OK
      NG

    Result:

    OK

    REPLACE HEADLIGHT ECU SUB-ASSEMBLY LH. Refer to  REMOVAL [06/2018 - 09/2022]

    Result:

    NG

    REPAIR OR REPLACE HARNESS OR CONNECTOR

  6. INSPECT NO. 1 INTEGRATION RELAY
    1. Remove the No. 1 integration relay.

      Refer to REMOVAL [06/2018 - 01/2019] , or refer to REMOVAL [01/2019 - 03/2019] , or refer to REMOVAL [03/2019 - 09/2022]

    2. Inspect the No. 1 integration relay.

      Refer to INSPECTION [06/2018 - 01/2019] , or refer to INSPECTION [01/2019 - 09/2022]

      Result

      Proceed to
      OK
      NG

    Result:

    NG

    REPLACE NO. 1 INTEGRATION RELAY. Refer to  REMOVAL [06/2018 - 01/2019]  , or refer to  REMOVAL [01/2019 - 03/2019]  , or refer to  REMOVAL [03/2019 - 09/2022]

    Result:

    OK

    See step  7

  7. CHECK HARNESS AND CONNECTOR (NO. 1 INTEGRATION RELAY - HEADLIGHT UNIT ASSEMBLY LH (HEADLIGHT CORD))
    1. Disconnect the A23 headlight unit assembly LH connector.
    2. Measure the resistance according to the value(s) in the table below.

      Standard Resistance

      Tester Connection Condition Specified Condition
      1B-1 - A23-1 Always Below 1 Ω
      1B-1 or A23-1 - Body ground Always 10 kΩ or higher

      Result

      Proceed to
      OK
      NG

    Result:

    NG

    REPAIR OR REPLACE HARNESS OR CONNECTOR

    Result:

    OK

    See step  8

  8. CHECK HARNESS AND CONNECTOR (POWER SOURCE - NO. 1 INTEGRATION RELAY)
    1. Measure the voltage according to the value(s) in the table below.

      Standard Voltage

      Tester Connection Condition Specified Condition
      1A-5 - Body ground Always 11 to 14 V

      Result

      Proceed to
      OK
      NG

    Result:

    NG

    REPAIR OR REPLACE HARNESS OR CONNECTOR

    Result:

    OK

    See step  9

  9. CHECK HARNESS AND CONNECTOR (NO. 1 INTEGRATION RELAY - INSTRUMENT PANEL JUNCTION BLOCK ASSEMBLY)
    1. Disconnect the 4B instrument panel junction block assembly connector.
    2. Measure the resistance according to the value(s) in the table below.

      Standard Resistance

      Tester Connection Condition Specified Condition
      1B-2 - 4B-31 Always Below 1 Ω
      1B-2 or 4B-31 - Body ground Always 10 kΩ or higher

      Result

      Proceed to
      OK
      NG

    Result:

    NG

    REPAIR OR REPLACE HARNESS OR CONNECTOR

    Result:

    OK

    See step  10

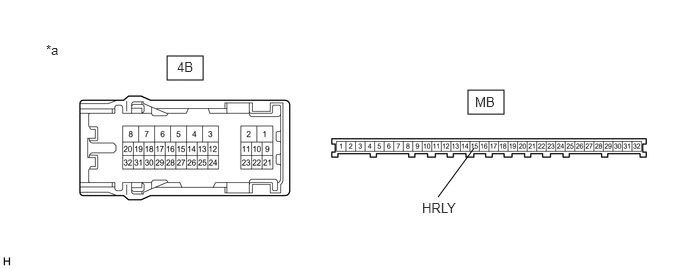

  10. INSPECT INSTRUMENT PANEL JUNCTION BLOCK ASSEMBLY
    GTY867866Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    *a Component without harness connected
    (Instrument Panel Junction Block Assembly)    		 - -
    1. Remove the main body ECU (multiplex network body ECU) from the instrument panel junction block assembly.

      Refer to REMOVAL [06/2018 - 01/2019] , or refer to REMOVAL [01/2019 - 03/2019] , or refer to REMOVAL [03/2019 - 09/2022]

    2. Measure the resistance according to the value(s) in the table below.

      Standard Resistance

      Tester Connection Condition Specified Condition
      4B-31 - MB-15 (HRLY) Always Below 1 Ω

      Result

      Proceed to
      OK
      NG

    Result:

    OK

    REPLACE MAIN BODY ECU (MULTIPLEX NETWORK BODY ECU). Refer to  REMOVAL [06/2018 - 01/2019]  , or refer to  REMOVAL [01/2019 - 03/2019]  , or refer to  REMOVAL [03/2019 - 09/2022]

    Result:

    NG

    REPLACE INSTRUMENT PANEL JUNCTION BLOCK ASSEMBLY. Refer to  REMOVAL [06/2018 - 01/2019]  , or refer to  REMOVAL [01/2019 - 03/2019]  , or refer to  REMOVAL [03/2019 - 09/2022]

  11. INSPECT HEADLIGHT UNIT ASSEMBLY RH (HEADLIGHT CORD)
    GTY900422Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    *1 Headlight Unit Assembly RH (Headlight Cord) - -
    *a Component without harness connected
    (to Headlight ECU Sub-assembly RH)    		 *b Component without harness connected
    (to Wire Harness)
    1. Remove the headlight unit assembly RH.

      Refer to DISASSEMBLY [06/2018 - 01/2019] , or refer to DISASSEMBLY [01/2019 - 03/2019] , or refer to DISASSEMBLY [03/2019 - 09/2022]

    2. Measure the resistance according to the value(s) in the table below.

      Standard Resistance

      Tester Connection Condition Specified Condition
      A22-1 - A-13 (ECUB) Always Below 1 Ω
      A22-4 - A-12 (GND) Always Below 1 Ω

      Result

      Proceed to
      OK
      NG

    Result:

    NG

    REPLACE HEADLIGHT UNIT ASSEMBLY RH. Refer to  DISASSEMBLY [06/2018 - 01/2019]  , or refer to  DISASSEMBLY [01/2019 - 03/2019]  , or refer to  DISASSEMBLY [03/2019 - 09/2022]

    Result:

    OK

    See step  12

  12. INSPECT HEADLIGHT ECU SUB-ASSEMBLY RH (ECUB TERMINAL VOLTAGE)
    GTY875841Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    *a Front view of wire harness connector
    (to Headlight ECU Sub-assembly RH)
    1. Disconnect the A headlight ECU sub-assembly RH connector.
    2. Connect the A22 headlight unit assembly RH connector.
    3. Measure the voltage according to the value(s) in the table below.

      Standard Voltage

      Tester Connection Condition Specified Condition
      A-13 (ECUB) - Body ground Engine switch on (IG) 9.5 to 14 V

      Result

      Proceed to
      OK
      NG

    Result:

    NG

    See step  14

    Result:

    OK

    See step  13

  13. CHECK HARNESS AND CONNECTOR (HEADLIGHT ECU SUB-ASSEMBLY RH - BODY GROUND)
    1. Measure the resistance according to the value(s) in the table below.

      Standard Resistance

      Tester Connection Condition Specified Condition
      A-12 (GND) - Body ground Always Below 1 Ω

      Result

      Proceed to
      OK
      NG

    Result:

    OK

    REPLACE HEADLIGHT ECU SUB-ASSEMBLY RH. Refer to  REMOVAL [06/2018 - 09/2022]

    Result:

    NG

    REPAIR OR REPLACE HARNESS OR CONNECTOR

  14. INSPECT NO. 1 INTEGRATION RELAY
    1. Remove the No. 1 integration relay.

      Refer to REMOVAL [06/2018 - 01/2019] , or refer to REMOVAL [01/2019 - 03/2019] , or refer to REMOVAL [03/2019 - 09/2022]

    2. Inspect the No. 1 integration relay.

      Refer to INSPECTION [06/2018 - 01/2019] , or refer to INSPECTION [01/2019 - 09/2022]

      Result

      Proceed to
      OK
      NG

    Result:

    NG

    REPLACE NO. 1 INTEGRATION RELAY. Refer to  REMOVAL [06/2018 - 01/2019]  , or refer to  REMOVAL [01/2019 - 03/2019]  , or refer to  REMOVAL [03/2019 - 09/2022]

    Result:

    OK

    See step  15

  15. CHECK HARNESS AND CONNECTOR (NO. 1 INTEGRATION RELAY - HEADLIGHT UNIT ASSEMBLY RH (HEADLIGHT CORD))
    1. Disconnect the A22 headlight unit assembly RH connector.
    2. Measure the resistance according to the value(s) in the table below.

      Standard Resistance

      Tester Connection Condition Specified Condition
      1A-12 - A22-1 Always Below 1 Ω
      1A-12 or A22-1 - Body ground Always 10 kΩ or higher

      Result

      Proceed to
      OK
      NG

    Result:

    NG

    REPAIR OR REPLACE HARNESS OR CONNECTOR

    Result:

    OK

    See step  16

  16. CHECK HARNESS AND CONNECTOR (POWER SOURCE - NO. 1 INTEGRATION RELAY)
    1. Measure the voltage according to the value(s) in the table below.

      Standard Voltage

      Tester Connection Condition Specified Condition
      1B-8 - Body ground Always 11 to 14 V

      Result

      Proceed to
      OK
      NG

    Result:

    NG

    REPAIR OR REPLACE HARNESS OR CONNECTOR

    Result:

    OK

    See step  17

  17. CHECK HARNESS AND CONNECTOR (NO. 1 INTEGRATION RELAY - MAIN BODY ECU (MULTIPLEX NETWORK BODY ECU))
    1. Disconnect the I85 main body ECU (multiplex network body ECU) connector.
    2. Measure the resistance according to the value(s) in the table below.

      Standard Resistance

      Tester Connection Condition Specified Condition
      1A-11 - I85-12 (HRY2) Always Below 1 Ω
      1A-11 or I85-12 (HRY2) - Body ground Always 10 kΩ or higher

      Result

      Proceed to
      OK
      NG

    Result:

    OK

    REPLACE MAIN BODY ECU (MULTIPLEX NETWORK BODY ECU). Refer to  REMOVAL [06/2018 - 01/2019]  , or refer to  REMOVAL [01/2019 - 03/2019]  , or refer to  REMOVAL [03/2019 - 09/2022]

    Result:

    NG

    REPAIR OR REPLACE HARNESS OR CONNECTOR
