DTC B242E: Open in IG Circuit [06/2018 - 09/2022]: Procedure
- CLEAR DTC
- Connect the Techstream to the DLC3.
- Turn the engine switch on (IG).
- Turn the Techstream on.
- Enter the following menus: Body Electrical / AFS or AFS (Sub) / Trouble Codes.
- Clear the DTCs.
Body Electrical > AFS > Clear DTCs
Body Electrical > AFS (Sub) > Clear DTCs
Result
Proceed to NEXT
Result:
NEXT
See step 2
- CHECK FOR DTC
- Connect the Techstream to the DLC3.
- Turn the engine switch on (IG).
- Wait 10 seconds or more.
- Turn the Techstream on.
- Enter the following menus: Body Electrical / AFS or AFS (Sub) / Trouble Codes.
- Check for DTCs.
Body Electrical > AFS > Trouble Codes
Body Electrical > AFS (Sub) > Trouble Codes
OK
DTC B242E is not output.
Result
Result Proceed to OK A NG (DTC output from headlight ECU sub-assembly LH) B NG (DTC output from headlight ECU sub-assembly RH) C
Result:
A
USE SIMULATION METHOD TO CHECK. Refer to HOW TO PROCEED WITH TROUBLESHOOTING [06/2018 - ]
Result:
C
See step 6
Result:
B
See step 3
- INSPECT HEADLIGHT UNIT ASSEMBLY LH (HEADLIGHT CORD)
*1 Headlight Unit Assembly LH (Headlight Cord) - - *a Component without harness connected
(to Headlight ECU Sub-assembly LH)*b Component without harness connected
(to Wire Harness)- Remove the headlight unit assembly LH.
Refer to DISASSEMBLY [06/2018 - 01/2019] , or refer to DISASSEMBLY [01/2019 - 03/2019] , or refer to DISASSEMBLY [03/2019 - 09/2022]
- Measure the resistance according to the value(s) in the table below.
Standard Resistance
Tester Connection Condition Specified Condition A23-3 - A-4 (IG) Always Below 1 Ω A23-4 - A-12 (GND) Always Below 1 Ω Result
Proceed to OK NG
Result:
NG
REPLACE HEADLIGHT UNIT ASSEMBLY LH. Refer to DISASSEMBLY [06/2018 - 01/2019] , or refer to DISASSEMBLY [01/2019 - 03/2019] , or refer to DISASSEMBLY [03/2019 - 09/2022]
Result:
OK
See step 4
- Remove the headlight unit assembly LH.
- INSPECT HEADLIGHT ECU SUB-ASSEMBLY LH (IG TERMINAL VOLTAGE)

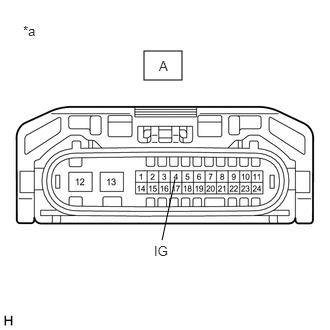

*a Front view of wire harness connector
(to Headlight ECU Sub-assembly LH)- Disconnect the A headlight ECU sub-assembly LH connector.
- Connect the A23 headlight unit assembly LH connector.
- Measure the voltage according to the value(s) in the table below.
Standard Voltage
Tester Connection Condition Specified Condition A-4 (IG) - Body ground Engine switch on (IG) 11 to 14 V Result
Proceed to OK NG
Result:
NG
REPAIR OR REPLACE HARNESS OR CONNECTOR
Result:
OK
See step 5
- CHECK HARNESS AND CONNECTOR (HEADLIGHT ECU SUB-ASSEMBLY LH - BODY GROUND)
- Measure the resistance according to the value(s) in the table below.
Standard Resistance
Tester Connection Condition Specified Condition A-12 (GND) - Body ground Always Below 1 Ω Result
Proceed to OK NG
Result:
OK
REPLACE HEADLIGHT ECU SUB-ASSEMBLY LH. Refer to REMOVAL [06/2018 - 09/2022]
Result:
NG
REPAIR OR REPLACE HARNESS OR CONNECTOR
- Measure the resistance according to the value(s) in the table below.

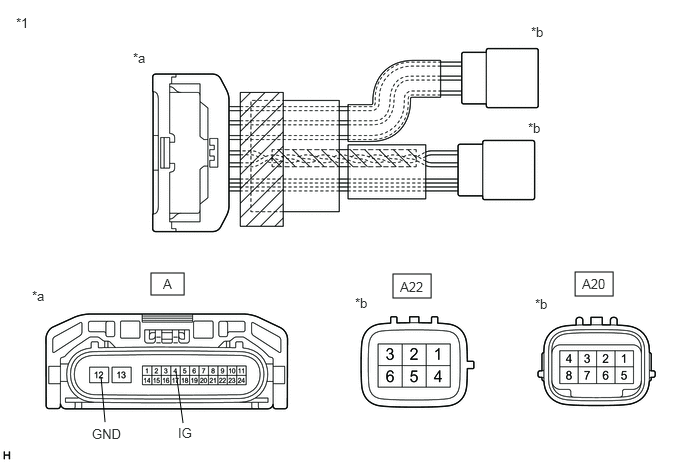

- INSPECT HEADLIGHT UNIT ASSEMBLY RH (HEADLIGHT CORD)
*1 Headlight Unit Assembly RH (Headlight Cord) - - *a Component without harness connected
(to Headlight ECU Sub-assembly RH)*b Component without harness connected
(to Wire Harness)- Remove the headlight unit assembly RH.
Refer to DISASSEMBLY [06/2018 - 01/2019] , or refer to DISASSEMBLY [01/2019 - 03/2019] , or refer to DISASSEMBLY [03/2019 - 09/2022]
- Measure the resistance according to the value(s) in the table below.
Standard Resistance
Tester Connection Condition Specified Condition A22-3 - A-4 (IG) Always Below 1 Ω A22-4 - A-12 (GND) Always Below 1 Ω Result
Proceed to OK NG
Result:
NG
REPLACE HEADLIGHT UNIT ASSEMBLY RH. Refer to DISASSEMBLY [06/2018 - 01/2019] , or refer to DISASSEMBLY [01/2019 - 03/2019] , or refer to DISASSEMBLY [03/2019 - 09/2022]
Result:
OK
See step 7
- Remove the headlight unit assembly RH.
- INSPECT HEADLIGHT ECU SUB-ASSEMBLY RH (IG TERMINAL VOLTAGE)
*a Front view of wire harness connector
(to Headlight ECU Sub-assembly RH)- Disconnect the A headlight ECU sub-assembly RH connector.
- Connect the A22 headlight unit assembly RH connector.
- Measure the voltage according to the value(s) in the table below.
Standard Voltage
Tester Connection Condition Specified Condition A-4 (IG) - Body ground Engine switch on (IG) 11 to 14 V Result
Proceed to OK NG
Result:
NG
REPAIR OR REPLACE HARNESS OR CONNECTOR
Result:
OK
See step 8
- CHECK HARNESS AND CONNECTOR (HEADLIGHT ECU SUB-ASSEMBLY RH - BODY GROUND)
- Measure the resistance according to the value(s) in the table below.
Standard Resistance
Tester Connection Condition Specified Condition A-12 (GND) - Body ground Always Below 1 Ω Result
Proceed to OK NG
Result:
OK
REPLACE HEADLIGHT ECU SUB-ASSEMBLY RH. Refer to REMOVAL [06/2018 - 09/2022]
Result:
NG
REPAIR OR REPLACE HARNESS OR CONNECTOR
- Measure the resistance according to the value(s) in the table below.
