DTC B2410: Headlight Swivel ECU LH Communication; DTC B2411: Headlight Swivel ECU RH Communication [06/2018 - 09/2022]: Procedure

WARNING: This page is about a different car, the 2022 Toyota Corolla, 2021 Toyota Corolla, 2020 Toyota Corolla, and 2019 Toyota Corolla. However, it is still accessible from the selected car via links, so may be relevant.
  1. CLEAR DTC
    1. Connect the Techstream to the DLC3.
    2. Turn the engine switch on (IG).
    3. Turn the Techstream on.
    4. Enter the following menus: Body Electrical / AFS / Trouble Codes.
    5. Clear the DTCs.

      Body Electrical > AFS > Clear DTCs

      Result

      Proceed to
      NEXT

    Result:

    NEXT

    See step  2

  2. CHECK FOR DTC
    1. Connect the Techstream to the DLC3.
    2. Turn the engine switch on (IG).
    3. Wait 10 seconds or more.
    4. Turn the Techstream on.
    5. Enter the following menus: Body Electrical / AFS / Trouble Codes.
    6. Check for DTCs.

      Body Electrical > AFS > Trouble Codes

      OK

      DTC B2410 and B2411 are not output.

      Result

      Result Proceed to
      OK A
      NG (DTC B2410 is output) B
      NG (DTC B2411 is output) C
      NG (DTC B2410 and B2411 are output) D

    Result:

    A

    USE SIMULATION METHOD TO CHECK. Refer to  HOW TO PROCEED WITH TROUBLESHOOTING [06/2018 - ]

    Result:

    C

    See step  4

    Result:

    D

    See step  8

    Result:

    B

    See step  3

  3. INSPECT HEADLIGHT ECU SUB-ASSEMBLY LH

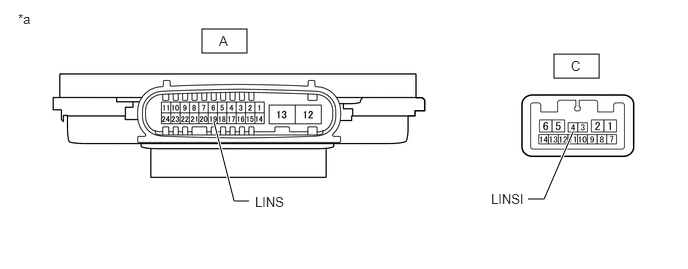

    GTY936772Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    *a Component without harness connected
    (Headlight ECU Sub-assembly LH)    		 - -
    1. Remove the headlight ECU sub-assembly LH.

      Refer to REMOVAL [06/2018 - 09/2022]

    2. Measure the resistance according to the value(s) in the table below.

      Standard Resistance

      Tester Connection Condition Specified Condition
      A-19 (LINS) - C-4 (LINSI) Always Below 1 Ω

      Result

      Proceed to
      OK
      NG

    Result:

    OK

    REPLACE HEADLIGHT UNIT ASSEMBLY LH. Refer to  DISASSEMBLY [06/2018 - 01/2019]  , or refer to  DISASSEMBLY [01/2019 - 03/2019]  , or refer to  DISASSEMBLY [03/2019 - 09/2022]

    Result:

    NG

    REPLACE HEADLIGHT ECU SUB-ASSEMBLY LH. Refer to  REMOVAL [06/2018 - 09/2022]

  4. CHECK HARNESS AND CONNECTOR (HEADLIGHT UNIT ASSEMBLY LH (HEADLIGHT CORD) - HEADLIGHT UNIT ASSEMBLY RH (HEADLIGHT CORD))
    1. Disconnect the A21 headlight unit assembly LH connector.
    2. Disconnect the A20 headlight unit assembly RH connector.
    3. Measure the resistance according to the value(s) in the table below.

      Standard Resistance

      Tester Connection Condition Specified Condition
      A21-8 - A20-8 Always Below 1 Ω

      Result

      Proceed to
      OK
      NG

    Result:

    NG

    REPAIR OR REPLACE HARNESS OR CONNECTOR

    Result:

    OK

    See step  5

  5. INSPECT HEADLIGHT UNIT ASSEMBLY RH (HEADLIGHT CORD)

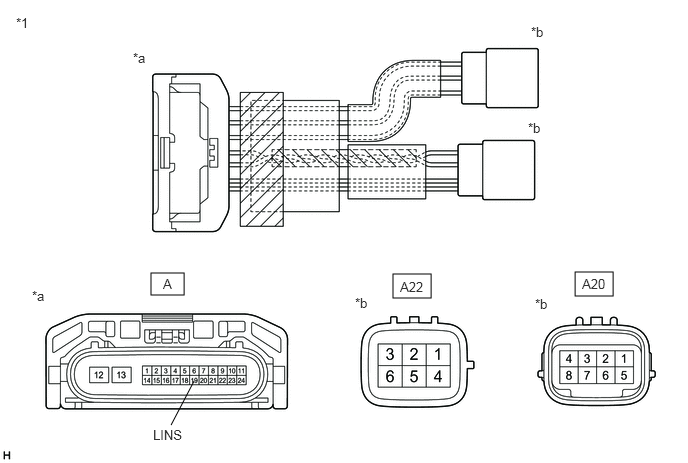

    GTY900426Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    *1 Headlight Unit Assembly RH (Headlight Cord) - -
    *a Component without harness connected
    (to Headlight ECU Sub-assembly RH)    		 *b Component without harness connected
    (to Wire Harness)
    1. Remove the headlight unit assembly RH.

      Refer to DISASSEMBLY [06/2018 - 01/2019] , or refer to DISASSEMBLY [01/2019 - 03/2019] , or refer to DISASSEMBLY [03/2019 - 09/2022]

    2. Measure the resistance according to the value(s) in the table below.

      Standard Resistance

      Tester Connection Condition Specified Condition
      A20-8 - A-19 (LINS) Always Below 1 Ω

      Result

      Proceed to
      OK
      NG

    Result:

    NG

    REPLACE HEADLIGHT UNIT ASSEMBLY RH. Refer to  DISASSEMBLY [06/2018 - 01/2019]  , or refer to  DISASSEMBLY [01/2019 - 03/2019]  , or refer to  DISASSEMBLY [03/2019 - 09/2022]

    Result:

    OK

    See step  6

  6. CHECK HEADLIGHT ECU SUB-ASSEMBLY LH (LINS TERMINAL SIGNAL OUTPUT)

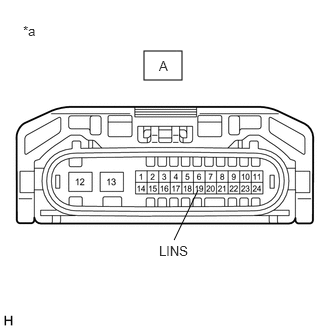

    GTY875839Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    *a Front view of wire harness connector
    (to Headlight ECU Sub-assembly RH)
    1. Connect the A21 headlight unit assembly LH connector.
    2. Connect the A20 headlight unit assembly RH connector.
    3. Using a Techstream, check the waveform.

      OK

      Tester Connection Condition Specified Condition
      A-19 (LINS) - Body ground Engine switch on (IG) Pulse generation

      Result

      Proceed to
      OK
      NG

    Result:

    NG

    REPLACE HEADLIGHT ECU SUB-ASSEMBLY LH. Refer to  REMOVAL [06/2018 - 09/2022]

    Result:

    OK

    See step  7

  7. INSPECT HEADLIGHT ECU SUB-ASSEMBLY RH
    GTY886334Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    *a Component without harness connected
    (Headlight ECU Sub-assembly RH)    		 - -
    1. Remove the headlight ECU sub-assembly RH.

      Refer to REMOVAL [06/2018 - 09/2022]

    2. Measure the resistance according to the value(s) in the table below.

      Standard Resistance

      Tester Connection Condition Specified Condition
      A-19 (LINS) - C-4 (LINSI) Always Below 1 Ω

      Result

      Proceed to
      OK
      NG

    Result:

    OK

    REPLACE HEADLIGHT UNIT ASSEMBLY RH. Refer to  DISASSEMBLY [06/2018 - 01/2019]  , or refer to  DISASSEMBLY [01/2019 - 03/2019]  , or refer to  DISASSEMBLY [03/2019 - 09/2022]

    Result:

    NG

    REPLACE HEADLIGHT ECU SUB-ASSEMBLY RH. Refer to  REMOVAL [06/2018 - 09/2022]

  8. CHECK HARNESS AND CONNECTOR (HEADLIGHT UNIT ASSEMBLY LH (HEADLIGHT CORD) - HEADLIGHT UNIT ASSEMBLY RH (HEADLIGHT CORD))
    1. Disconnect the A21 headlight unit assembly LH connector.
    2. Disconnect the A20 headlight unit assembly RH connector.
    3. Measure the resistance according to the value(s) in the table below.

      Standard Resistance

      Tester Connection Condition Specified Condition
      A21-8 or A20-8 - Body ground Always 10 kΩ or higher

      Result

      Proceed to
      OK
      NG

    Result:

    NG

    REPAIR OR REPLACE HARNESS OR CONNECTOR

    Result:

    OK

    See step  9

  9. CLEAR DTC
    1. Connect the A21 headlight unit assembly LH connector.
    2. Connect the Techstream to the DLC3.
    3. Turn the engine switch on (IG).
    4. Turn the Techstream on.
    5. Enter the following menus: Body Electrical / AFS / Trouble Codes.
    6. Clear the DTCs.

      Body Electrical > AFS > Clear DTCs

      Result

      Proceed to
      NEXT

    Result:

    NEXT

    See step  10

  10. CHECK FOR DTC
    1. Connect the Techstream to the DLC3.
    2. Turn the engine switch on (IG).
    3. Wait 10 seconds or more.
    4. Turn the Techstream on.
    5. Enter the following menus: Body Electrical / AFS / Trouble Codes.
    6. Check for DTCs.

      Body Electrical > AFS > Trouble Codes

      Result

      Result Proceed to
      DTC B2411 is output A
      DTC B2410 and B2411 are output B

    Result:

    B

    See step  17

    Result:

    A

    See step  11

  11. CHECK HEADLIGHT UNIT ASSEMBLY RH
    1. Remove the headlight unit assembly RH.

      Refer to DISASSEMBLY [06/2018 - 01/2019] , or refer to DISASSEMBLY [01/2019 - 03/2019] , or refer to DISASSEMBLY [03/2019 - 09/2022]

    2. Connect the A20 headlight unit assembly RH connector.

      Result

      Proceed to
      NEXT

    Result:

    NEXT

    See step  12

  12. CLEAR DTC
    1. Connect the Techstream to the DLC3.
    2. Turn the engine switch on (IG).
    3. Turn the Techstream on.
    4. Enter the following menus: Body Electrical / AFS / Trouble Codes.
    5. Clear the DTCs.

      Body Electrical > AFS > Clear DTCs

      Result

      Proceed to
      NEXT

    Result:

    NEXT

    See step  13

  13. CHECK FOR DTC
    1. Connect the Techstream to the DLC3.
    2. Turn the engine switch on (IG).
    3. Wait 10 seconds or more.
    4. Turn the Techstream on.
    5. Enter the following menus: Body Electrical / AFS / Trouble Codes.
    6. Check for DTCs.

      Body Electrical > AFS > Trouble Codes

      Result

      Result Proceed to
      DTC B2411 is output A
      DTC B2410 and B2411 are output B

    Result:

    B

    REPLACE HEADLIGHT UNIT ASSEMBLY RH. Refer to  DISASSEMBLY [06/2018 - 01/2019]  , or refer to  DISASSEMBLY [01/2019 - 03/2019]  , or refer to  DISASSEMBLY [03/2019 - 09/2022]

    Result:

    A

    See step  14

  14. CHECK HEADLIGHT ECU SUB-ASSEMBLY RH
    1. Remove the headlight ECU sub-assembly RH.

      Refer to REMOVAL [06/2018 - 09/2022]

    2. Connect the A headlight ECU sub-assembly RH connector.

      Result

      Proceed to
      NEXT

    Result:

    NEXT

    See step  15

  15. CLEAR DTC
    1. Connect the Techstream to the DLC3.
    2. Turn the engine switch on (IG).
    3. Turn the Techstream on.
    4. Enter the following menus: Body Electrical / AFS / Trouble Codes.
    5. Clear the DTCs.

      Body Electrical > AFS > Clear DTCs

      Result

      Proceed to
      NEXT

    Result:

    NEXT

    See step  16

  16. CHECK FOR DTC
    1. Connect the Techstream to the DLC3.
    2. Turn the engine switch on (IG).
    3. Wait 10 seconds or more.
    4. Turn the Techstream on.
    5. Enter the following menus: Body Electrical / AFS / Trouble Codes.
    6. Check for DTCs.

      Body Electrical > AFS > Trouble Codes

      Result

      Result Proceed to
      DTC B2411 is output A
      DTC B2410 and B2411 are output B

    Result:

    A

    REPLACE HEADLIGHT UNIT ASSEMBLY RH. Refer to  DISASSEMBLY [06/2018 - 01/2019]  , or refer to  DISASSEMBLY [01/2019 - 03/2019]  , or refer to  DISASSEMBLY [03/2019 - 09/2022]

    Result:

    B

    REPLACE HEADLIGHT ECU SUB-ASSEMBLY RH. Refer to  REMOVAL [06/2018 - 09/2022]

  17. CHECK HEADLIGHT ECU SUB-ASSEMBLY LH
    1. Remove the headlight ECU sub-assembly LH.

      Refer to REMOVAL [06/2018 - 09/2022]

    2. Connect the A headlight ECU sub-assembly LH connector.
    3. Disconnect the A20 headlight unit assembly RH connector.

      Result

      Proceed to
      NEXT

    Result:

    NEXT

    See step  18

  18. CLEAR DTC
    1. Connect the Techstream to the DLC3.
    2. Turn the engine switch on (IG).
    3. Turn the Techstream on.
    4. Enter the following menus: Body Electrical / AFS / Trouble Codes.
    5. Clear the DTCs.

      Body Electrical > AFS > Clear DTCs

      Result

      Proceed to
      NEXT

    Result:

    NEXT

    See step  19

  19. CHECK FOR DTC
    1. Connect the Techstream to the DLC3.
    2. Turn the engine switch on (IG).
    3. Wait 10 seconds or more.
    4. Turn the Techstream on.
    5. Enter the following menus: Body Electrical / AFS / Trouble Codes.
    6. Check for DTCs.

      Body Electrical > AFS > Trouble Codes

      Result

      Result Proceed to
      DTC B2410 is output A
      DTC B2410 and B2411 are output B

    Result:

    A

    REPLACE HEADLIGHT UNIT ASSEMBLY LH. Refer to  DISASSEMBLY [06/2018 - 01/2019]  , or refer to  DISASSEMBLY [01/2019 - 03/2019]  , or refer to  DISASSEMBLY [03/2019 - 09/2022]

    Result:

    B

    REPLACE HEADLIGHT ECU SUB-ASSEMBLY LH. Refer to  REMOVAL [06/2018 - 09/2022]
