Parts Location [09/2022 - 11/2022]: Illustration
WARNING: This page is about a different car, the 2023 Toyota GR Corolla and 2023 Toyota Corolla. However, it is still accessible from the selected car via links, so may be relevant.

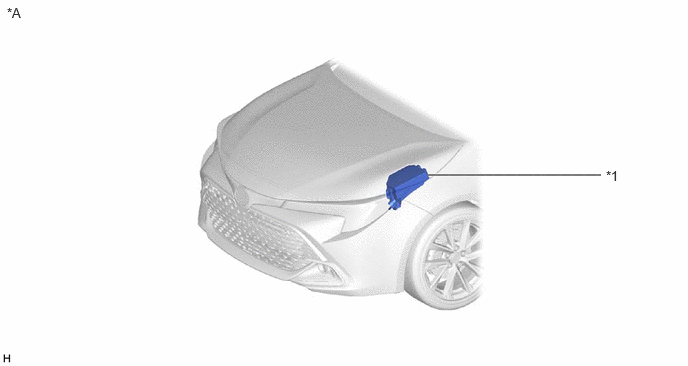

 Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
|
| *A |
for Hatchback |
- |
- |
| *1 |
NO. 1 ENGINE ROOM RELAY BLOCK AND NO. 1 JUNCTION BLOCK ASSEMBLY
- INP STD NO. 3 FUSE |
- |
- |

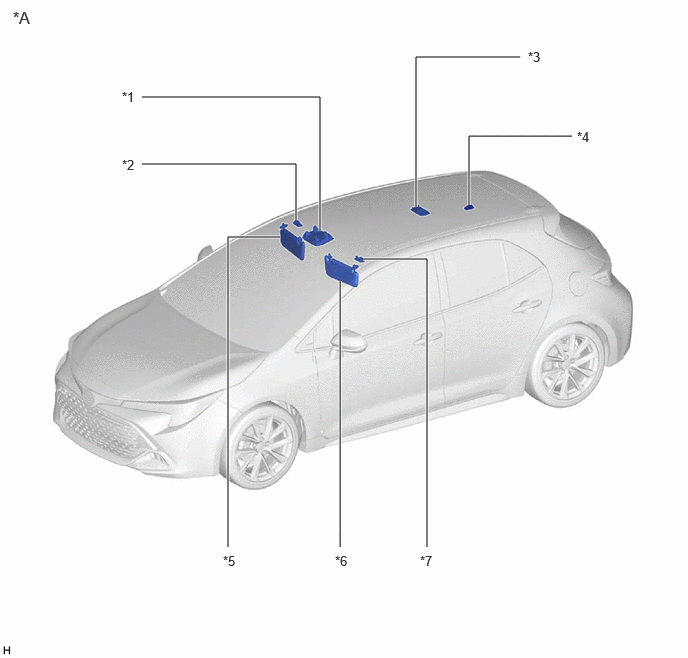

 Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
|
| *A |
for Hatchback |
- |
- |
| *1 |
NO. 1 LUGGAGE COMPARTMENT LIGHT ASSEMBLY |
*2 |
MAP LIGHT ASSEMBLY |
| *3 |
VISOR ASSEMBLY LH |
*4 |
VISOR ASSEMBLY RH |
| *5 |
NO. 1 ROOM LIGHT ASSEMBLY |
*6 |
VANITY LIGHT ASSEMBLY LH |
| *7 |
VANITY LIGHT ASSEMBLY RH |
- |
- |

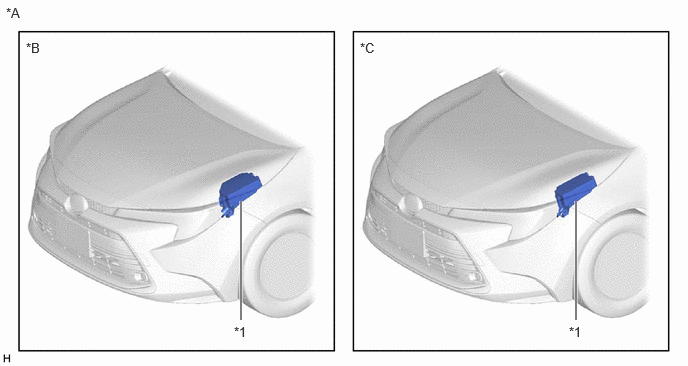

 Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
|
| *A |
for Sedan |
*B |
for Gasoline Model |
| *C |
for HV Model |
- |
- |
| *1 |
NO. 1 ENGINE ROOM RELAY BLOCK AND NO. 1 JUNCTION BLOCK ASSEMBLY
- INP STD NO. 3 FUSE |
- |
- |

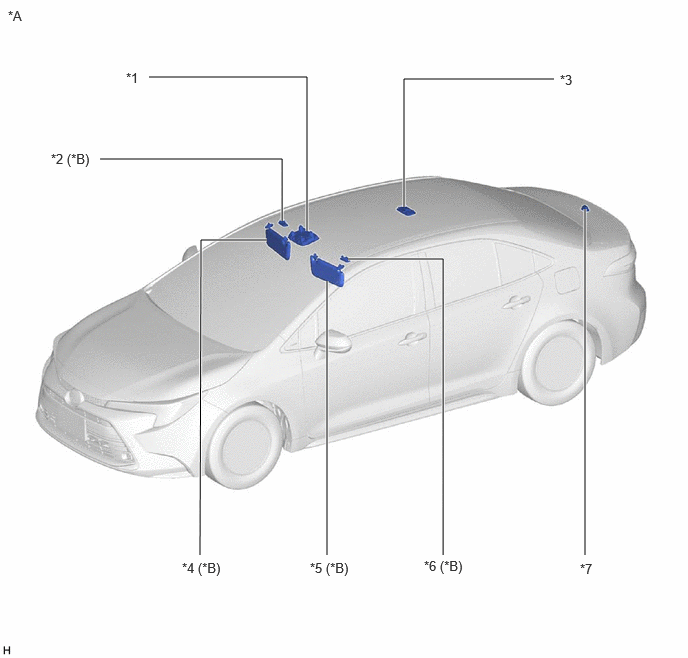

 Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
|
| *A |
for Sedan |
*B |
w/ Vanity Light |
| *1 |
MAP LIGHT ASSEMBLY |
*2 |
VANITY LIGHT ASSEMBLY RH |
| *3 |
NO. 1 ROOM LIGHT ASSEMBLY |
*4 |
VISOR ASSEMBLY RH |
| *5 |
VISOR ASSEMBLY LH |
*6 |
VANITY LIGHT ASSEMBLY LH |
| *7 |
NO. 1 LUGGAGE COMPARTMENT LIGHT ASSEMBLY |
- |
- |

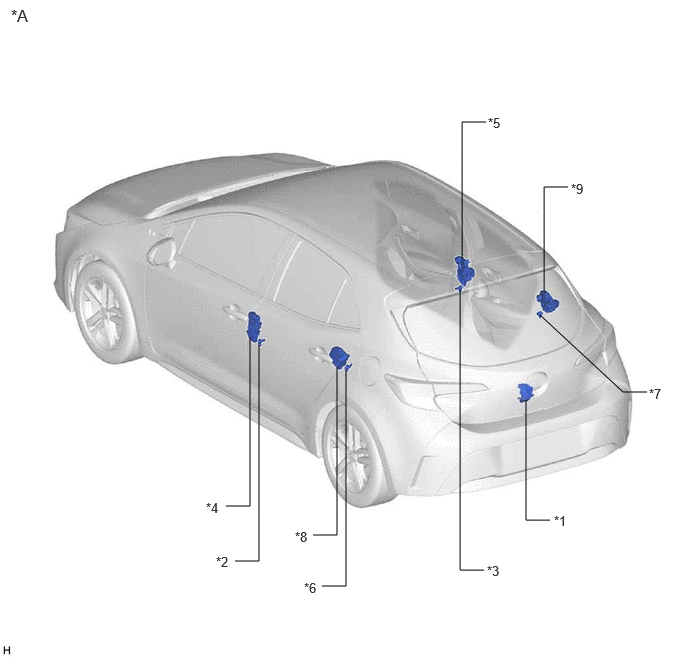

 Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
|
| *A |
for Hatchback |
- |
- |
| *1 |
BACK DOOR LOCK WITH COURTESY LIGHT SWITCH ASSEMBLY |
*2 |
FRONT DOOR COURTESY LIGHT SWITCH ASSEMBLY LH |
| *3 |
FRONT DOOR COURTESY LIGHT SWITCH ASSEMBLY RH |
*4 |
FRONT DOOR LOCK WITH MOTOR ASSEMBLY LH |
| *5 |
FRONT DOOR LOCK WITH MOTOR ASSEMBLY RH |
*6 |
REAR DOOR COURTESY LIGHT SWITCH ASSEMBLY LH |
| *7 |
REAR DOOR COURTESY LIGHT SWITCH ASSEMBLY RH |
*8 |
REAR DOOR LOCK WITH MOTOR ASSEMBLY LH |
| *9 |
REAR DOOR LOCK WITH MOTOR ASSEMBLY RH |
- |
- |

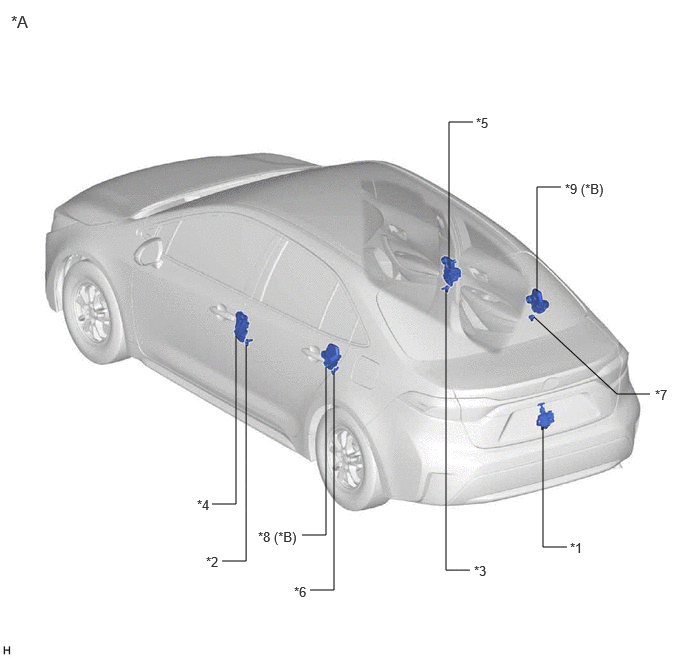

 Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
|
| *A |
for Sedan |
*B |
w/ Unlock Detection Switch |
| *1 |
LUGGAGE COMPARTMENT DOOR LOCK ASSEMBLY |
*2 |
FRONT DOOR COURTESY LIGHT SWITCH ASSEMBLY LH |
| *3 |
FRONT DOOR COURTESY LIGHT SWITCH ASSEMBLY RH |
*4 |
FRONT DOOR LOCK WITH MOTOR ASSEMBLY LH |
| *5 |
FRONT DOOR LOCK WITH MOTOR ASSEMBLY RH |
*6 |
REAR DOOR COURTESY LIGHT SWITCH ASSEMBLY LH |
| *7 |
REAR DOOR COURTESY LIGHT SWITCH ASSEMBLY RH |
*8 |
REAR DOOR LOCK WITH MOTOR ASSEMBLY LH |
| *9 |
REAR DOOR LOCK WITH MOTOR ASSEMBLY RH |
- |
- |

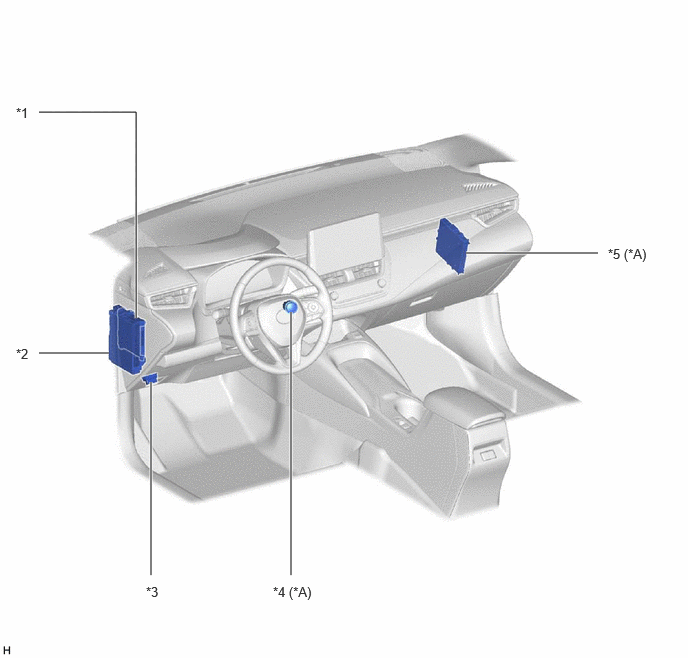

 Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
|
| *A |
w/ Smart Key System |
- |
- |
| *1 |
MAIN BODY ECU (MULTIPLEX NETWORK BODY ECU) |
*2 |
POWER DISTRIBUTION BOX ASSEMBLY
- ECU-IGR NO. 2 FUSE
- IGR NO. 2 RELAY |
| *3 |
DLC3 |
*4 |
PUSH START SWITCH |
| *5 |
CERTIFICATION ECU (SMART KEY ECU ASSEMBLY) |
- |
- |
