Components [01/2019 - 11/2022]

WARNING: This page is about a different car, the 2022 Toyota Corolla, 2021 Toyota Corolla, 2020 Toyota Corolla, and 2019 Toyota Corolla. However, it is still accessible from the selected car via links, so may be relevant.

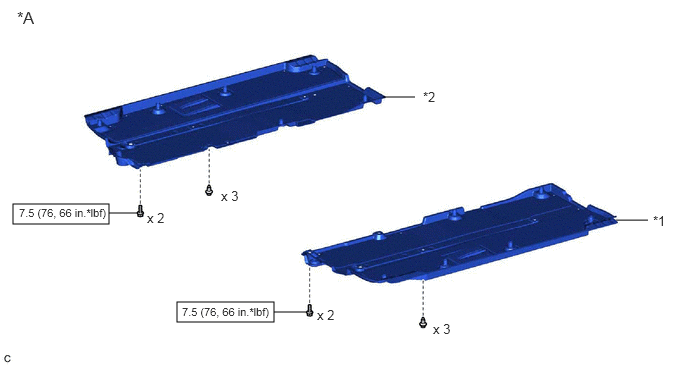

Fig 1: Exhaust Pipe Replacement Components With Torque Specifications [01/2019 - 11/2022] (1 Of 3)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Callout	Description	Callout	Description
*A	w/ Cover	-	-
*1	FRONT FLOOR COVER LH	*2	FRONT FLOOR COVER RH
	N.m (kgf/cm, ft.lbf): Specified torque	-	-

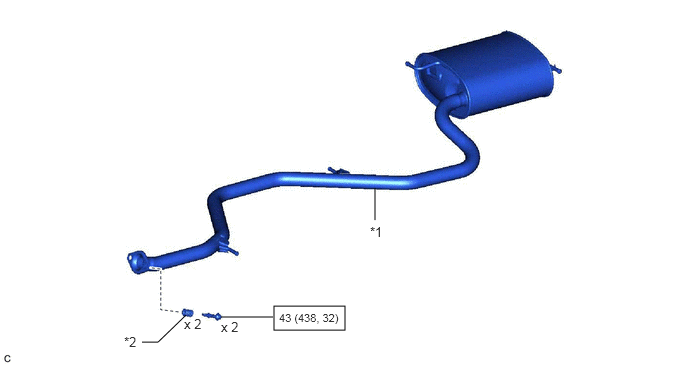

Fig 2: Exhaust Pipe Replacement Components With Torque Specifications [01/2019 - 11/2022] (2 Of 3)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Callout	Description	Callout	Description
*1	TAIL EXHAUST PIPE ASSEMBLY	*2	COMPRESSION SPRING
	N.m (kgf/cm, ft.lbf): Specified torque	-	-

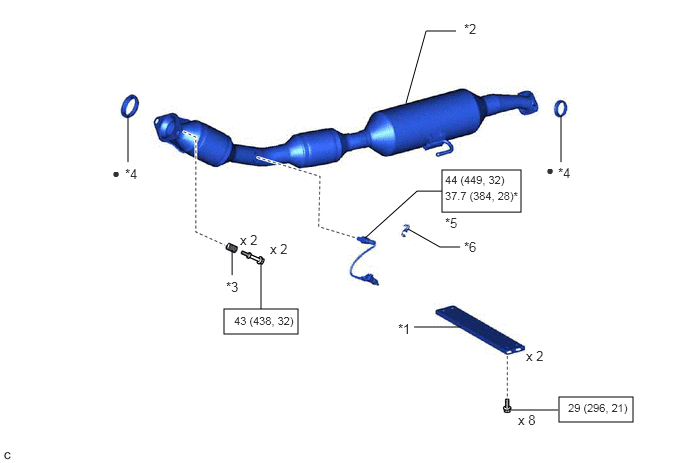

Fig 3: Exhaust Pipe Replacement Components With Torque Specifications [01/2019 - 11/2022] (3 Of 3)

Callout	Description	Callout	Description
*1	FRONT FLOOR CENTER BRACE	*2	FRONT EXHAUST PIPE ASSEMBLY (TWC: Front and Rear Catalyst)
*3	COMPRESSION SPRING	*4	EXHAUST PIPE GASKET
*5	HEATED OXYGEN SENSOR	*6	WIRE HARNESS CLAMP BRACKET
	N.m (kgf/cm, ft.lbf): Specified torque	•	Non-reusable part
*	For use with SST	-	-
