Removal [03/2019 - 11/2022]: Procedure

WARNING: This page is about a different car, the 2022 Toyota Corolla, 2021 Toyota Corolla, 2020 Toyota Corolla, and 2019 Toyota Corolla. However, it is still accessible from the selected car via links, so may be relevant.
  1. REMOVE PURGE VALVE (PURGE VSV)

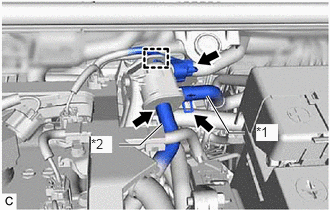

    1. Slide the clip and disconnect the fuel vapor feed hose from the purge valve (purge VSV).
      GTY855670Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *1 Fuel Vapor Feed Hose
      *2 No. 1 Fuel Vapor Feed Hose
    2. Disconnect the No. 1 fuel vapor feed hose from the purge valve (purge VSV).
    3. Disconnect the purge valve (purge VSV) connector.

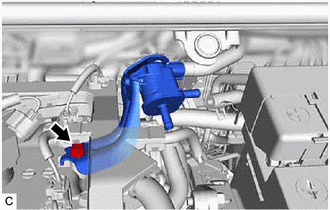

    4. Disengage the clamp.
    5. Remove the bolt and purge valve (purge VSV) from the cylinder head cover sub-assembly.
      GTY867424Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
