- INSPECT PURGE VALVE (PURGE VSV)
- Measure the resistance according to the value(s) in the table below.
Standard Resistance
Tester Connection Condition Specified Condition 1 - 2 20°C (68°F) 23 to 26 Ω If the result is not as specified, replace the purge valve (purge VSV).
- Apply battery voltage between the terminals of the purge valve (purge VSV) and check that the following occurs when blowing air into the port (E).
OK
Condition Specified Condition Battery voltage applied between terminals 1 and 2 Air flows from port (F) Battery voltage not applied between terminals 1 and 2 Air does not flow If the result is not as specified, replace the purge valve (purge VSV).

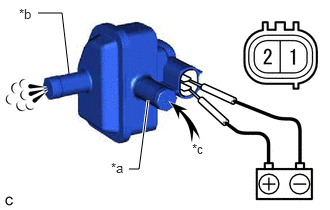

*a Port (E) *b Port (F) *c Air
- Measure the resistance according to the value(s) in the table below.
