Components [01/2019 - 11/2022]
WARNING: This page is about a different car, the 2022 Toyota Corolla, 2021 Toyota Corolla, 2020 Toyota Corolla, and 2019 Toyota Corolla. However, it is still accessible from the selected car via links, so may be relevant.

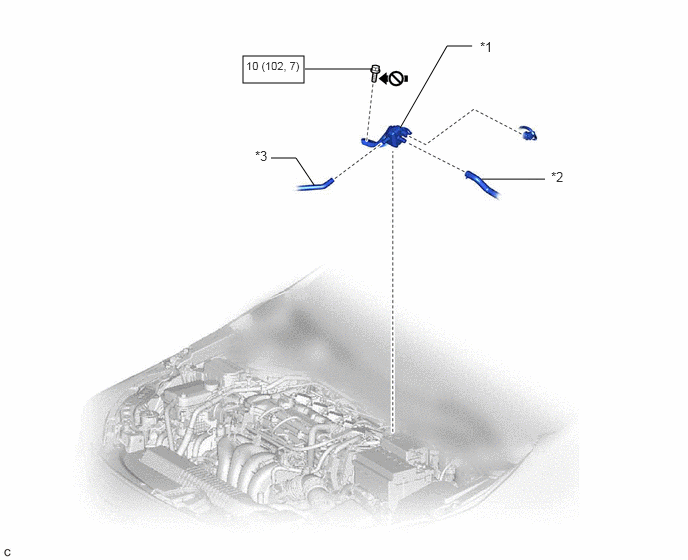

Fig 1: Purge Valve (W/ Canister Pump Module) Replacement Components With Torque Specifications [01/2019 - 11/2022]
| Callout | Description | Callout | Description |
|---|---|---|---|
| *1 | PURGE VALVE (PURGE VSV) | *2 | FUEL VAPOR FEED HOSE |
| *3 | NO. 1 FUEL VAPOR FEED HOSE | - | - |
| N.m (kgf/cm, ft.lbf): Specified torque | Do not apply lubricants to the threaded parts |
