Components [01/2019 - 11/2022]

WARNING: This page is about a different car, the 2022 Toyota Corolla, 2021 Toyota Corolla, 2020 Toyota Corolla, and 2019 Toyota Corolla. However, it is still accessible from the selected car via links, so may be relevant.

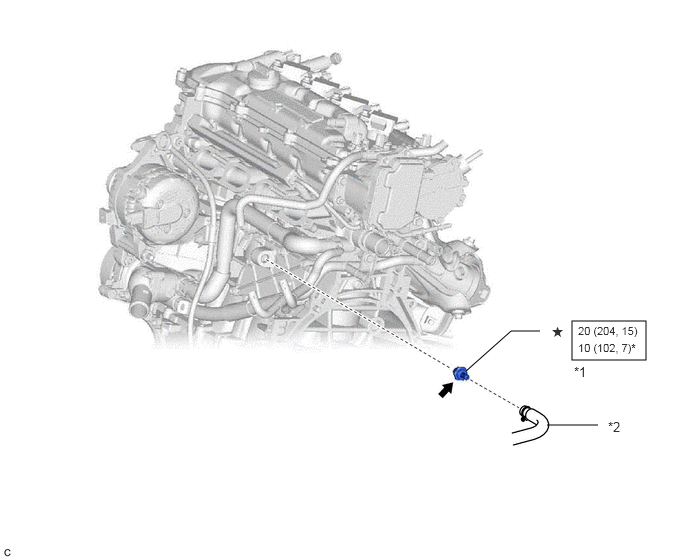

Fig 1: PCV Valve Replacement Components With Torque Specifications [01/2019 - 11/2022]

Callout	Description	Callout	Description
*1	PCV VALVE (VENTILATION VALVE SUB-ASSEMBLY)	*2	VENTILATION HOSE
	N.m (kgf/cm, ft.lbf): Specified torque	*	For use with a 22 mm ball joint lock nut wrench
	Adhesive 1324	*	Precoated part
