Components [01/2019 - 11/2022]
WARNING: This page is about a different car, the 2022 Toyota Corolla, 2021 Toyota Corolla, 2020 Toyota Corolla, and 2019 Toyota Corolla. However, it is still accessible from the selected car via links, so may be relevant.

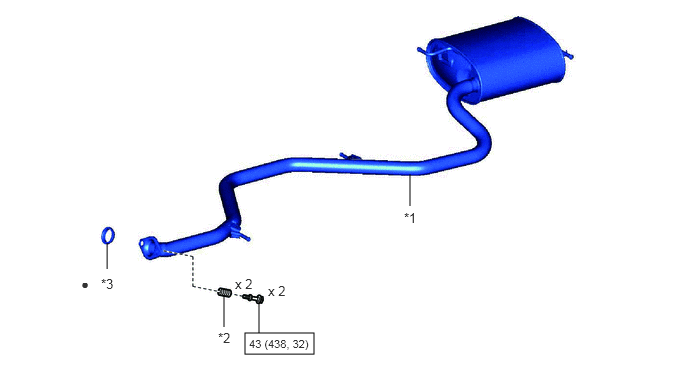

Fig 1: Canister (W/ Canister Pump Module) Replacement Components With Torque Specifications [01/2019 - 11/2022] (1 Of 4)
| Callout | Description | Callout | Description |
|---|---|---|---|
| *1 | TAIL EXHAUST PIPE ASSEMBLY | *2 | COMPRESSION SPRING |
| *3 | GASKET | - | - |
| N.m (kgf/cm, ft.lbf): Specified torque | • | Non-reusable part |
Fig 2: Canister (W/ Canister Pump Module) Replacement Components With Torque Specifications [01/2019 - 11/2022] (2 Of 4)
| Callout | Description | Callout | Description |
|---|---|---|---|
| *A | w/ Cover | *B | for Type A |
| *C | for Type B | - | - |
| *1 | REAR FLOOR SIDE MEMBER COVER LH | *2 | REAR FLOOR SIDE MEMBER COVER RH |
| N.m (kgf/cm, ft.lbf): Specified torque | - | - |
Fig 3: Canister (W/ Canister Pump Module) Replacement Components With Torque Specifications [01/2019 - 11/2022] (3 Of 4)
| Callout | Description | Callout | Description |
|---|---|---|---|
| *1 | REAR STABILIZER BAR SUB-ASSEMBLY | - | - |
| Tightening torque for "Major areas involving basic vehicle performance such as moving/turning/stopping": N.m (kgf/cm, ft.lbf) | - | - |

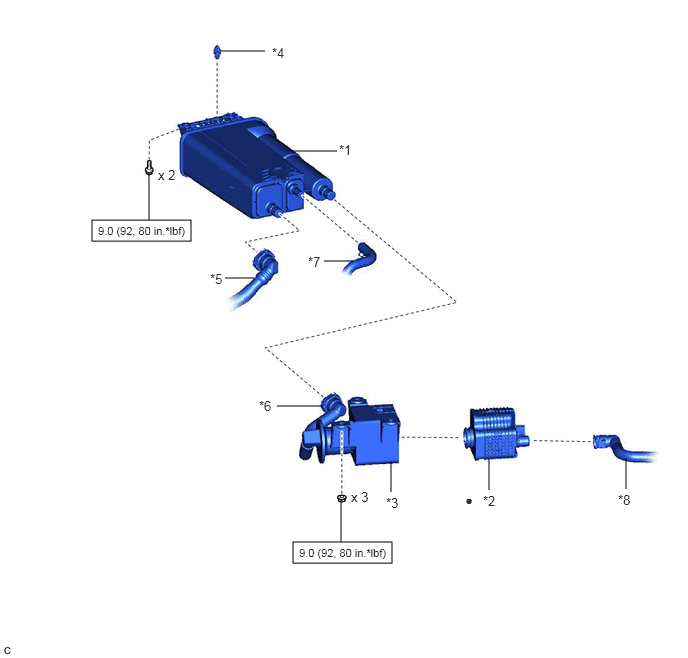

Fig 4: Canister (W/ Canister Pump Module) Replacement Components With Torque Specifications [01/2019 - 11/2022] (4 Of 4)
| Callout | Description | Callout | Description |
|---|---|---|---|
| *1 | CANISTER (CHARCOAL CANISTER ASSEMBLY) | *2 | LEAK DETECTION PUMP SUB-ASSEMBLY |
| *3 | NO. 2 CHARCOAL CANISTER SUB-ASSEMBLY | *4 | CLIP |
| *5 | FUEL TANK VENT HOSE | *6 | VENT LINE HOSE |
| *7 | PURGE LINE HOSE | *8 | AIR LINE TUBE |
| N.m (kgf/cm, ft.lbf): Specified torque | • | Non-reusable part |
