Parts Location [01/2019 - 03/2019]: Illustration
WARNING: This page is about a different car, the 2022 Toyota Corolla, 2021 Toyota Corolla, 2020 Toyota Corolla, and 2019 Toyota Corolla. However, it is still accessible from the selected car via links, so may be relevant.

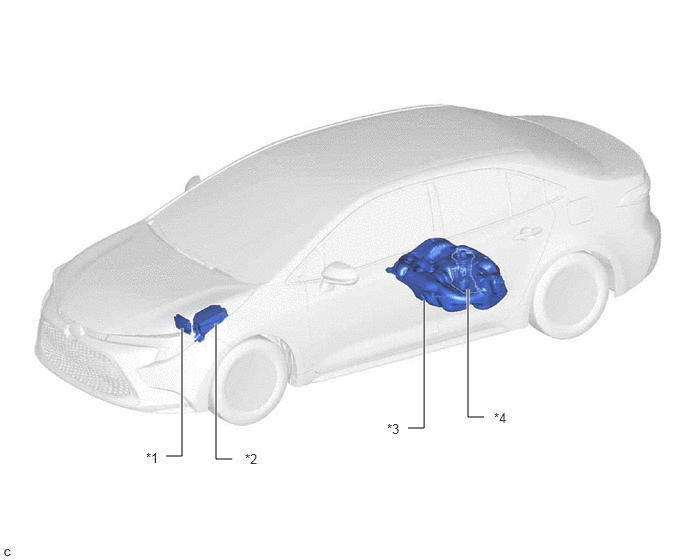

| *1 | ECM | *2 | NO. 1 ENGINE ROOM RELAY BLOCK AND NO. 1 JUNCTION BLOCK ASSEMBLY - IG2 NO. 1 RELAY - EFI-MAIN RELAY - C/OPN RELAY - ECU-IG2 NO. 1 FUSE |
| *3 | FUEL TANK ASSEMBLY | *4 | FUEL SUCTION TUBE WITH PUMP AND GAUGE ASSEMBLY - FUEL PUMP - FUEL SENDER GAUGE ASSEMBLY - FUEL PRESSURE REGULATOR ASSEMBLY |
