Parts Location [01/2019 - 03/2019]: Illustration
WARNING: This page is about a different car, the 2022 Toyota Corolla, 2021 Toyota Corolla, 2020 Toyota Corolla, and 2019 Toyota Corolla. However, it is still accessible from the selected car via links, so may be relevant.
 Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
|

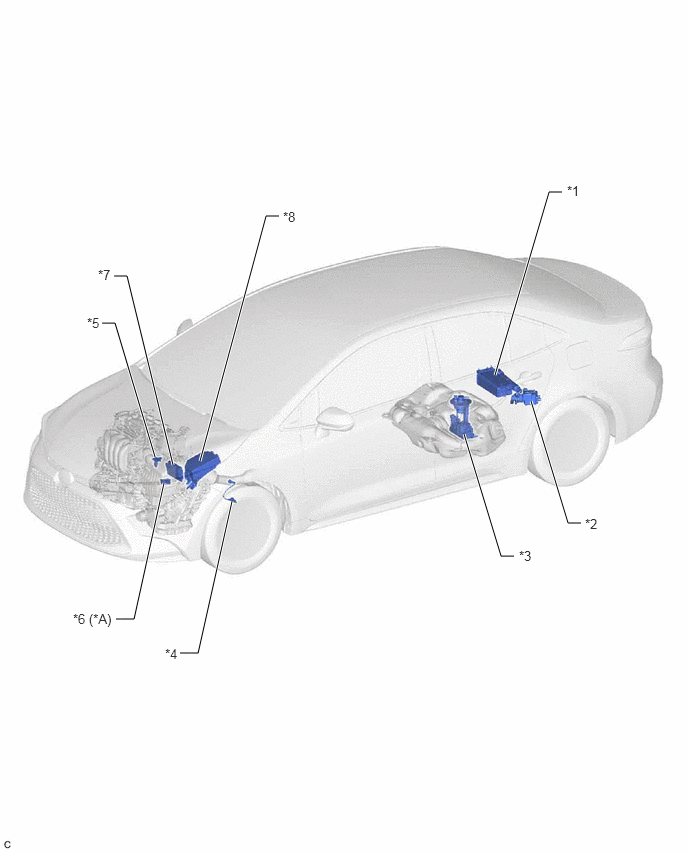

| *A |
for CVT Models |
- |
- |
| *1 |
CANISTER |
*2 |
CANISTER PUMP MODULE |
| *3 |
FUEL PUMP |
*4 |
HEATED OXYGEN SENSOR |
| *5 |
MASS AIR FLOW METER SUB-ASSEMBLY |
*6 |
PARK/NEUTRAL POSITION SWITCH ASSEMBLY |
| *7 |
ECM |
*8 |
NO. 1 ENGINE ROOM RELAY BLOCK AND NO. 1 JUNCTION BLOCK ASSEMBLY |
 Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
|

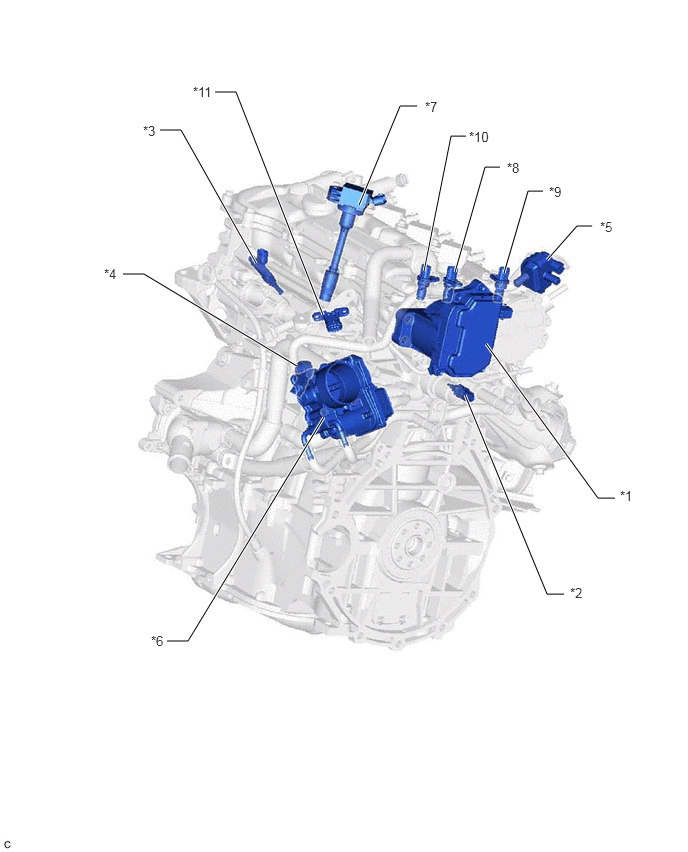

| *1 |
CONTINUOUSLY VARIABLE VALVE LIFT CONTROLLER ASSEMBLY |
*2 |
ENGINE COOLANT TEMPERATURE SENSOR |
| *3 |
FUEL INJECTOR ASSEMBLY |
*4 |
KNOCK CONTROL SENSOR |
| *5 |
PURGE VSV |
*6 |
THROTTLE BODY ASSEMBLY |
| *7 |
IGNITION COIL ASSEMBLY |
*8 |
CAM POSITION SENSOR (for Intake Camshaft) |
| *9 |
CAM POSITION SENSOR (for Exhaust Camshaft) |
*10 |
VALVEMATIC SHAFT SENSOR (CAM POSITION SENSOR) |
| *11 |
MANIFOLD ABSOLUTE PRESSURE SENSOR |
- |
- |
 Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
|

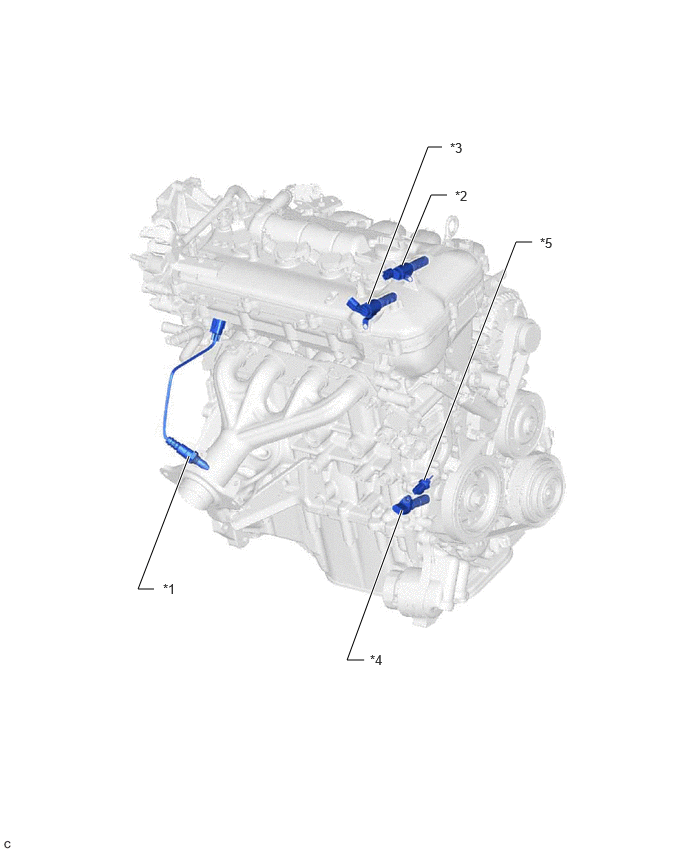

| *1 |
AIR FUEL RATIO SENSOR |
*2 |
CAMSHAFT TIMING OIL CONTROL VALVE ASSEMBLY (for Intake Camshaft) |
| *3 |
CAMSHAFT TIMING OIL CONTROL VALVE ASSEMBLY (for Exhaust Camshaft) |
*4 |
CRANK POSITION SENSOR |
| *5 |
ENGINE OIL TEMPERATURE SENSOR |
- |
- |
 Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
|

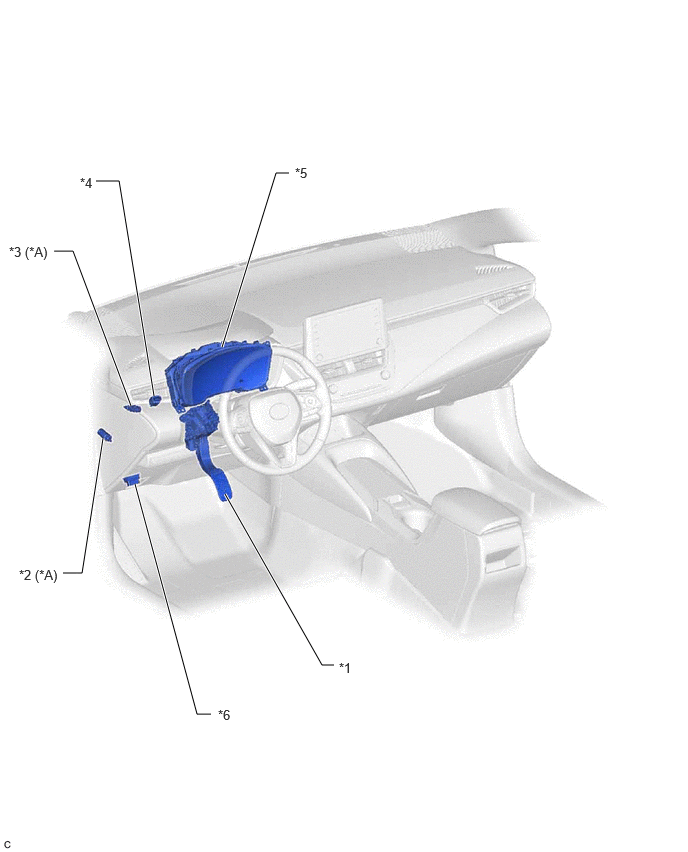

| *A |
for Manual Transaxle Models |
- |
- |
| *1 |
ACCELERATOR PEDAL SENSOR ASSEMBLY |
*2 |
CLUTCH START SWITCH ASSEMBLY |
| *3 |
CLUTCH SWITCH ASSEMBLY |
*4 |
STOP LIGHT SWITCH ASSEMBLY |
| *5 |
COMBINATION METER ASSEMBLY |
*6 |
DLC3 |
