Components [03/2019 - 11/2022]
WARNING: This page is about a different car, the 2022 Toyota Corolla, 2021 Toyota Corolla, 2020 Toyota Corolla, and 2019 Toyota Corolla. However, it is still accessible from the selected car via links, so may be relevant.
Fig 1: Fuel Tank (W/ Canister Pump Module) Replacement Components With Torque Specifications [03/2019 - 11/2022] (1 Of 2)
| Callout | Description | Callout | Description |
|---|---|---|---|
| *A | w/ Cover | *B | for Type A |
| *C | for Type B | - | - |
| *1 | REAR FLOOR SIDE MEMBER COVER LH | *2 | REAR FLOOR SIDE MEMBER COVER RH |
| N.m (kgf/cm, ft.lbf): Specified torque | - | - |

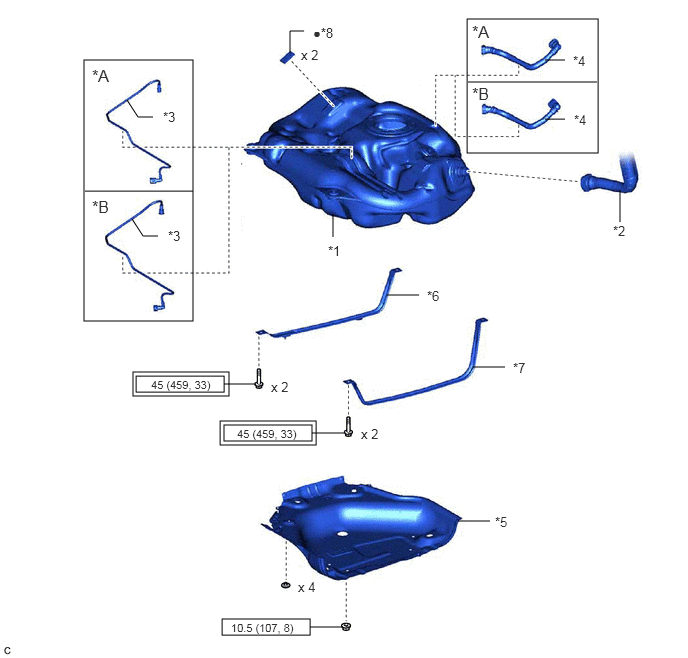

Fig 2: Fuel Tank (W/ Canister Pump Module) Replacement Components With Torque Specifications [03/2019 - 11/2022] (2 Of 2)
| Callout | Description | Callout | Description |
|---|---|---|---|
| *A | for TMC Made | *B | for TMMMS Made |
| *1 | FUEL TANK ASSEMBLY | *2 | FUEL TANK FILLER PIPE ASSEMBLY |
| *3 | FUEL TANK MAIN TUBE SUB-ASSEMBLY | *4 | FUEL TANK VENT HOSE SUB-ASSEMBLY |
| *5 | NO. 1 FUEL TANK PROTECTOR SUB-ASSEMBLY | *6 | NO. 1 FUEL TANK BAND SUB-ASSEMBLY RH |
| *7 | NO. 1 FUEL TANK BAND SUB-ASSEMBLY LH | *8 | NO. 2 FUEL TANK CUSHION |
| Tightening torque for "Major areas involving basic vehicle performance such as moving/turning/stopping": N.m (kgf/cm, ft.lbf) | N.m (kgf/cm, ft.lbf): Specified torque | ||
| • | Non-reusable part | - | - |
