Removal [09/2022 - 11/2022]: Procedure
WARNING: This page is about a different car, the 2022 Toyota Corolla, 2021 Toyota Corolla, 2020 Toyota Corolla, and 2019 Toyota Corolla. However, it is still accessible from the selected car via links, so may be relevant.
- REMOVE FUEL SUCTION TUBE WITH PUMP AND GAUGE ASSEMBLY
Refer to REMOVAL [09/2022 - 11/2022]
- REMOVE FUEL SENDER GAUGE ASSEMBLY

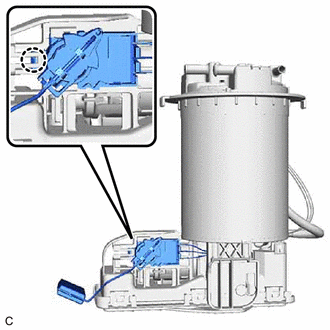

- Disconnect the fuel sender gauge assembly connector.

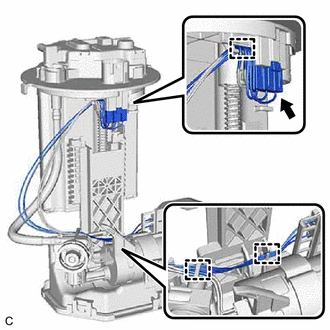

- Disengage the 3 clamps to disconnect the wire harness from the fuel suction tube with pump and gauge assembly.NOTE:
- Do not damage the wire harness.
- When disengaging each wire harness from the clamp, disengage one wire at a time.
- Disengage the claw to remove the fuel sender gauge assembly from the fuel suction tube with pump and gauge assembly.NOTE:
Be careful not to bend the arm of the fuel sender gauge assembly.
- Disconnect the fuel sender gauge assembly connector.
