Components [01/2019 - 11/2022]

WARNING: This page is about a different car, the 2022 Toyota Corolla, 2021 Toyota Corolla, 2020 Toyota Corolla, and 2019 Toyota Corolla. However, it is still accessible from the selected car via links, so may be relevant.

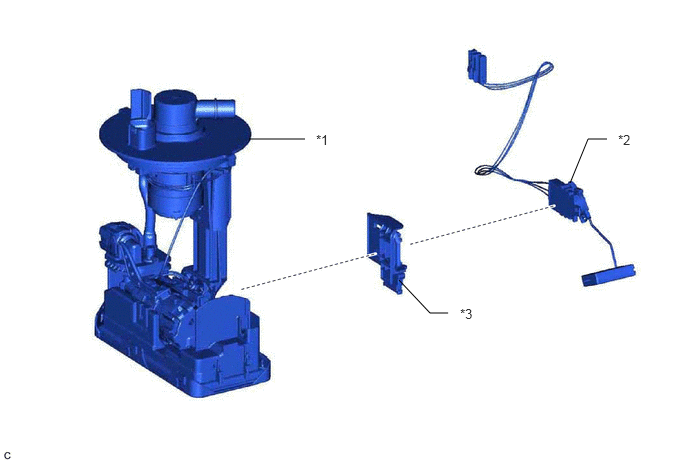

Fig 1: Fuel Sender Gauge Assembly (W/ Canister Pump Module) Replacement Components [01/2019 - 11/2022]

Callout	Description	Callout	Description
*1	FUEL SUCTION TUBE WITH PUMP AND GAUGE ASSEMBLY	*2	FUEL SENDER GAUGE ASSEMBLY
*3	FUEL GAUGE BRACKET	-	-
