Reassembly [03/2019 - 11/2022]: Procedure

WARNING: This page is about a different car, the 2022 Toyota Corolla, 2021 Toyota Corolla, 2020 Toyota Corolla, and 2019 Toyota Corolla. However, it is still accessible from the selected car via links, so may be relevant.

INSTALL FUEL PUMP

HINT:

Perform "Inspection After Repair" after replacing the fuel pump.

Refer to INITIALIZATION [01/2019 - 11/2022]

Apply gasoline to a new O-ring. Then install the O-ring and fuel pump spacer to the fuel pump.

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

*1	O-ring
*2	Fuel Pump Spacer

Engage the 3 claws to install the fuel pump to the No. 1 fuel suction support.
NOTE:
Make sure that the O-ring is not cut or pinched during installation.
Engage the 4 claws to install the fuel suction plate sub-assembly to the fuel sub-tank sub-assembly.

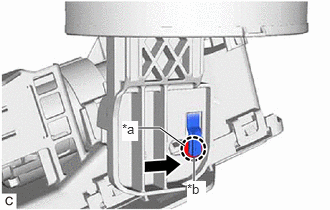

Align the protrusion of the fuel sub-tank sub-assembly with the installation hole of the fuel suction plate sub-assembly and then slide the fuel suction plate sub-assembly to install the fuel sub-tank sub-assembly.

*a	Protrusion
*b	Installation Hole
	Slide

Engage the 2 clamps and connect the fuel pump harness to the fuel suction tube with pump and gauge assembly.
NOTE:
- Do not damage the wire harness.
- When engaging each wire harness to the clamp, engage one wire at a time.
Connect the 2 fuel pump harness connectors.

INSTALL FUEL SENDER GAUGE ASSEMBLY
See step 1
