Removal [03/2019 - 09/2022]: Procedure

WARNING: This page is about a different car, the 2022 Toyota Corolla, 2021 Toyota Corolla, 2020 Toyota Corolla, and 2019 Toyota Corolla. However, it is still accessible from the selected car via links, so may be relevant.
  1. PRECAUTION
    NOTE:

    After turning the ignition switch off, waiting time may be required before disconnecting the cable from the negative (-) battery terminal. Therefore, make sure to read the disconnecting the cable from the negative (-) battery terminal notices before proceeding with work.

  2. DISCHARGE FUEL SYSTEM PRESSURE

    Refer to PRECAUTION [03/2019 - 09/2022]

  3. DISCONNECT CABLE FROM NEGATIVE BATTERY TERMINAL

    Refer to PROCEDURE - Step 1

  4. REMOVE REAR SEAT ASSEMBLY

    Refer to REMOVAL [01/2019 - ]

  5. REMOVE REAR FLOOR SERVICE HOLE COVER

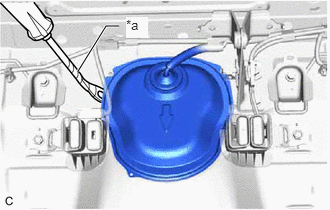

    1. Using a clip remover with its tip wrapped with protective tape, remove the rear floor service hole cover and butyl tape.
      GTY926573Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Protective Tape

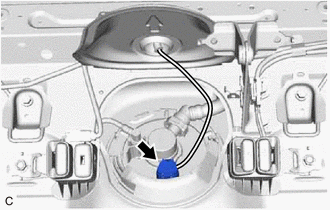

    2. Disconnect the fuel suction tube with pump and gauge assembly connector.
      GTY881436Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  6. DISCONNECT FUEL TANK VENT HOSE SUB-ASSEMBLY

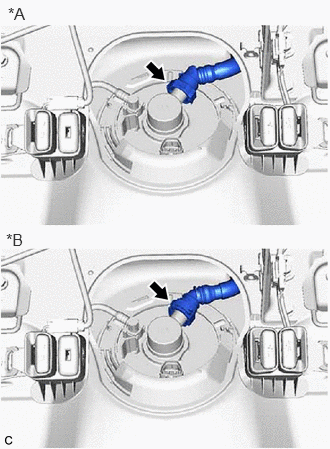

    1. Disconnect the fuel tank vent hose sub-assembly from the fuel suction tube with pump and gauge assembly.

      Refer to PRECAUTION [03/2019 - 09/2022]

      GTY860495Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *A for TMC Made
      *B for TMMMS Made
  7. DISCONNECT FUEL TANK MAIN TUBE SUB-ASSEMBLY

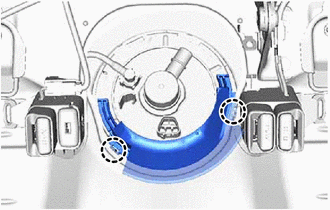

    1. Disengage the 2 claws to remove the No. 1 fuel tube clamp.
      GTY935696Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

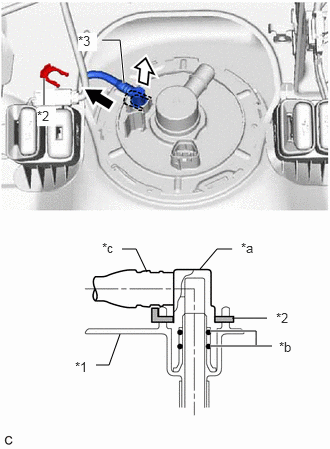

    2. Remove the tube joint clip, and pull off the fuel tube joint of the fuel tank main tube sub-assembly.
      GTY867629Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *1 Fuel Suction Plate Sub-assembly
      *2 Tube Joint Clip
      *3 Fuel Tank Main Tube Sub-assembly
      *a Fuel Tube Joint
      *b O-ring
      *c Nylon Tube
      Pull off
      Pull off
      NOTE:
      • Remove any foreign matter on the fuel tube joint before performing this work.
      • Do not scratch or allow any foreign matter to get on the parts when disconnecting them as the fuel tube connector has O-rings that seal the pipe (fuel pipe).
      • Be sure to disconnect the fuel tube joint by hand.
      • Do not bend, twist, pinch or kink the nylon tube.
      • Cover the disconnected fuel tube joint with a plastic bag to prevent damage and contamination.
      • If the fuel tube joint and fuel suction plate sub-assembly are stuck, push and pull to release them.
  8. REMOVE FUEL PUMP GAUGE RETAINER
    1. Remove the fuel pump gauge retainer.

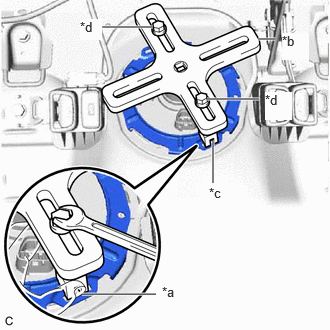

      1. Temporarily install SST (plate) and SST (claw) to the fuel pump gauge retainer.
        • SST: 09808-01071
        • SST: 09808-14031
          1. 09808-01030
          2. 09808-01090

        HINT:

        Securely insert the ends of SST (claw) into the insertion points in the fuel pump gauge retainer.

        GTY789934Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
        *a Insertion Point
        *b SST (Plate)
        *c SST (Claw)
        *d SST (Bolt)
      2. While firmly pressing SST (claw) into the insertion points in the fuel pump gauge retainer, tighten SST (bolt).

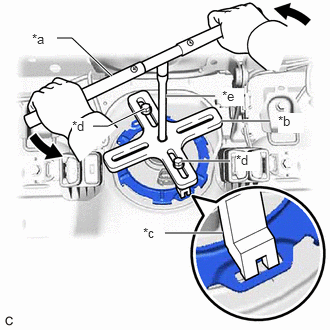

      3. Install SST (handle) and an extension bar to SST (plate).
        GTY868627Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
        *a SST (Handle)
        *b SST (Plate)
        *c SST (Claw)
        *d SST (Bolt)
        *e Extension Bar
        • SST: 09808-14031
          1. 09808-01010
      4. Lightly press down on SST to prevent it from separating from the fuel pump gauge retainer. While pressing down on SST, rotate SST (handle) slowly to loosen the fuel pump gauge retainer.
        NOTE:
        • Do not use any tools other than specified as this may result in damage to the fuel pump gauge retainer or fuel tank assembly.
        • Do not press down on SST excessively as this may make the fuel pump gauge retainer hard to rotate, and may damage components.
        • Make sure to rotate SST (handle) horizontally. If it is rotated at an angle, SST may come off.
        • Do not spin SST too fast or use an impact wrench as this may result in damage to components.
        • If SST comes off of the fuel pump gauge retainer, loosen SST (bolt) and reinstall SST.
      5. While pressing down on the fuel suction tube with pump and gauge assembly, remove the fuel pump gauge retainer.
  9. REMOVE FUEL SUCTION TUBE WITH PUMP AND GAUGE ASSEMBLY

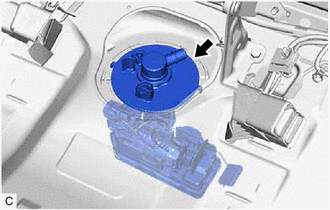

    1. Remove the fuel suction tube with pump and gauge assembly from the fuel tank assembly.
      NOTE:

      Be careful not to bend the arm of the fuel sender gauge assembly.

      GTY939067Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

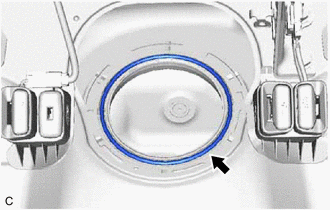

    2. Remove the fuel suction tube set gasket from the fuel tank assembly.
      GTY881450Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
