Disassembly [01/2019 - 11/2022]: Procedure

WARNING: This page is about a different car, the 2022 Toyota Corolla, 2021 Toyota Corolla, 2020 Toyota Corolla, and 2019 Toyota Corolla. However, it is still accessible from the selected car via links, so may be relevant.

REMOVE FUEL SENDER GAUGE ASSEMBLY
See step 2 [01/2019 - 03/2019], or see step 2 [03/2019 - 09/2022], or refer to REMOVAL [09/2022 - 11/2022]

REMOVE FUEL PUMP

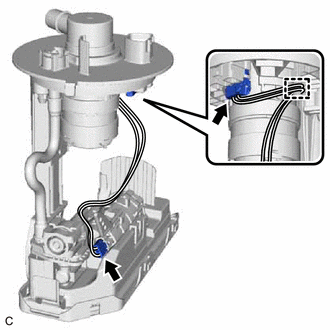

Disconnect the 2 fuel pump harness connectors.

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Disengage the clamp and remove the fuel pump harness from the fuel suction plate sub-assembly.
NOTE:
- Do not damage the wire harness.
- When disengaging each wire harness from the clamp, disengage one wire at a time.

Disengage the claw and slide the fuel suction plate sub-assembly and then separate it from the fuel sub-tank sub-assembly.

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

*1	Fuel Suction Plate Sub-assembly
	Pull
	Slide

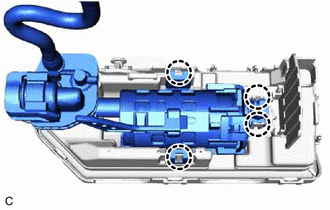

Disengage the 4 claws and remove the fuel suction plate sub-assembly from the fuel sub-tank sub-assembly.

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Disengage the 3 claws and remove the No. 2 fuel suction support from the fuel tube supporter.

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

*a	Fuel Tube Supporter

Remove the fuel pump from the fuel tube supporter.

Remove the O-ring and fuel pump spacer from the fuel pump.

*1	O-ring
*2	Fuel Pump Spacer
