Removal [03/2019 - 09/2022]: Procedure

WARNING: This page is about a different car, the 2022 Toyota Corolla, 2021 Toyota Corolla, 2020 Toyota Corolla, and 2019 Toyota Corolla. However, it is still accessible from the selected car via links, so may be relevant.

REMOVE FUEL SUCTION TUBE WITH PUMP AND GAUGE ASSEMBLY
Refer to REMOVAL [03/2019 - 09/2022]

REMOVE FUEL PRESSURE REGULATOR HOLDER

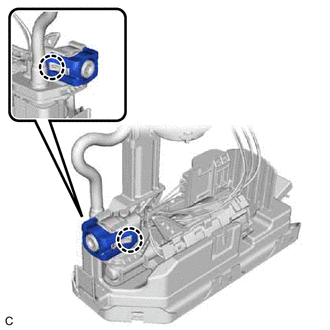

Disengage the 2 claws and remove the fuel pressure regulator holder from the fuel suction tube with pump and gauge assembly.

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

REMOVE FUEL PRESSURE REGULATOR ASSEMBLY

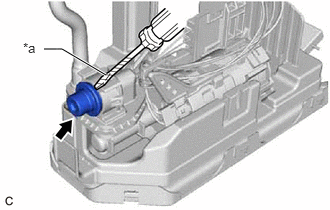

Using a screwdriver with its tip wrapped with protective tape, remove the fuel pressure regulator assembly from the fuel suction tube with pump and gauge assembly.

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

*a	Protective Tape

NOTE:

Pull out the fuel pressure regulator assembly carefully because the O-rings are firmly installed between the fuel pressure regulator assembly and fuel suction tube with pump and gauge assembly.
Do not damage the fuel suction tube with pump and gauge assembly.

Remove the 2 O-rings from the fuel pressure regulator assembly.

O-ring
