Components [01/2019 - 09/2022]
WARNING: This page is about a different car, the 2022 Toyota Corolla, 2021 Toyota Corolla, 2020 Toyota Corolla, and 2019 Toyota Corolla. However, it is still accessible from the selected car via links, so may be relevant.

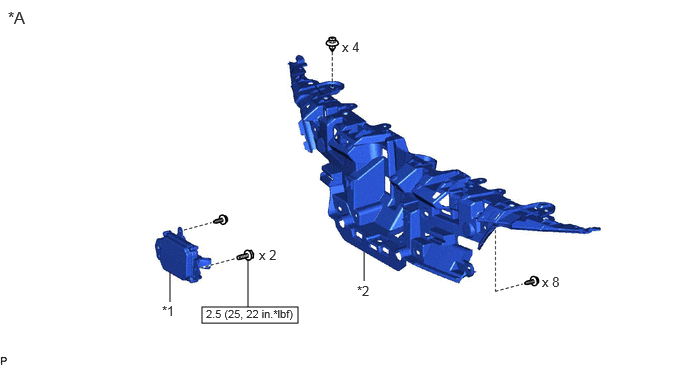

Fig 1: Millimeter Wave Radar Sensor Replacement Components With Torque Specifications [01/2019 - 09/2022] (1 Of 2)
| Callout | Description | Callout | Description |
|---|---|---|---|
| *A | for Hatchback | - | - |
| *1 | MILLIMETER WAVE RADAR SENSOR ASSEMBLY | *2 | INNER RADIATOR GRILLE |
| N*m (kgf*cm, ft.*lbf): Specified torque | - | - |

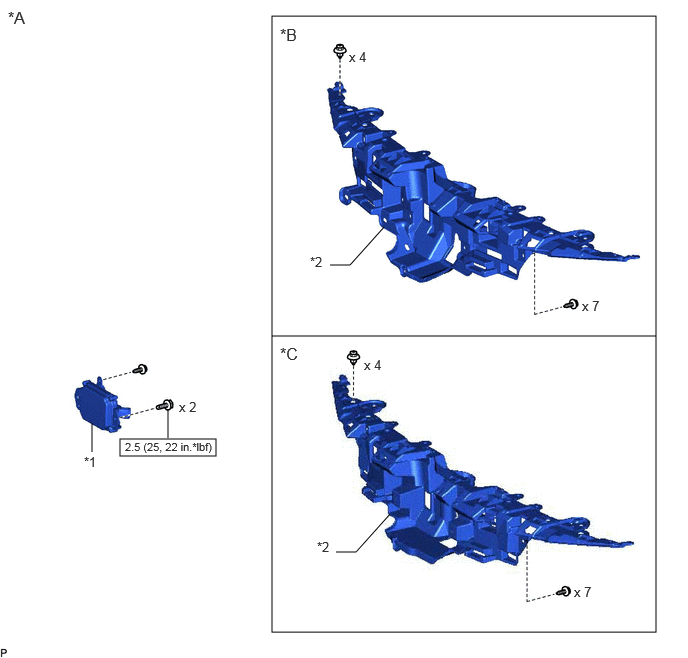

Fig 2: Millimeter Wave Radar Sensor Replacement Components With Torque Specifications [01/2019 - 09/2022] (2 Of 2)
| Callout | Description | Callout | Description |
|---|---|---|---|
| *A | for Sedan | *B | w/o LED Illumination Light on Front Bumper |
| *C | w/ LED Illumination Light on Front Bumper | - | - |
| *1 | MILLIMETER WAVE RADAR SENSOR ASSEMBLY | *2 | INNER RADIATOR GRILLE |
| N*m (kgf*cm, ft.*lbf): Specified torque | - | - |
