Removal [01/2019 - 09/2022]: Procedure

WARNING: This page is about a different car, the 2022 Toyota Corolla, 2021 Toyota Corolla, 2020 Toyota Corolla, and 2019 Toyota Corolla. However, it is still accessible from the selected car via links, so may be relevant.
  1. REMOVE NO. 2 FORWARD RECOGNITION COVER

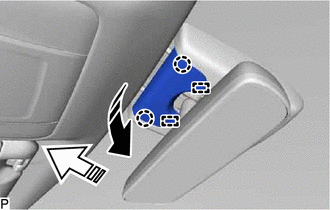

    1. Pull the No. 2 forward recognition cover in the direction indicated by the arrow (1) shown in the illustration to disengage the 2 claws.
      NOTE:

      If these claws are disengaged separately, they may break. Insert a molding remover between them and pull it down to disengage the claws simultaneously.

      GTY883002Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Remove in this Direction (1)
      Remove in this Direction (2)
    2. Pull the No. 2 forward recognition cover in the direction indicated by the arrow (2) shown in the illustration to disengage the 2 guides and remove the No. 2 forward recognition cover.
  2. REMOVE NO. 1 FORWARD RECOGNITION COVER

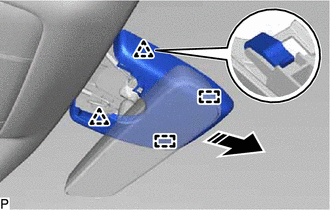

    1. Disengage the 2 clips and 2 guides to remove the No. 1 forward recognition cover as shown in the illustration.
      NOTE:

      To avoid damaging the guides, always slide the No. 1 forward recognition cover parallel to the windshield glass.

      GTY900294Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Remove in this Direction
  3. REMOVE FORWARD RECOGNITION LATCH

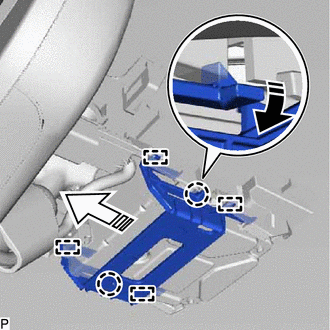

    1. Disengage the 2 claws in the direction indicated by the arrow (1) shown in the illustration.
      GTY940267Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Remove in this Direction (1)
      Remove in this Direction (2)
    2. Disengage the 4 guides in the direction indicated by the arrow (2) shown in the illustration to remove the forward recognition latch.
  4. REMOVE FORWARD RECOGNITION CAMERA
    NOTE:

    If the forward recognition camera has been struck or dropped, replace it with a new one.

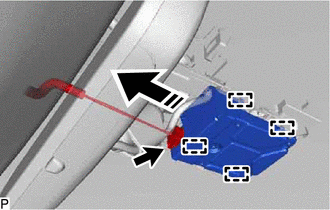

    1. Disconnect the connector.
      GTY895496Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Remove in this Direction
      NOTE:

      Do not pull the harness forcibly when disconnecting the connector.

    2. Disengage the 4 guides and remove the forward recognition camera as shown in the illustration.
      NOTE:
      • Do not touch the camera lens.
      • If the forward recognition camera bracket is deformed or damaged, replace it together with the windshield glass.
