Removal [06/2018 - 09/2022]: Procedure

WARNING: This page is about a different car, the 2022 Toyota Corolla, 2021 Toyota Corolla, 2020 Toyota Corolla, and 2019 Toyota Corolla. However, it is still accessible from the selected car via links, so may be relevant.

REMOVE FORWARD RECOGNITION CAMERA
Refer to REMOVAL [06/2018 - 01/2019] , or refer to REMOVAL [01/2019 - 09/2022]

REMOVE FORWARD RECOGNITION WITH HEATER HOOD SUB-ASSEMBLY

NOTE:

Do not touch the inner surface of the forward recognition with heater hood sub-assembly.
Do not apply force to the heating element of the forward recognition with heater hood sub-assembly or an open circuit may result.

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Inner Surface of Forward Recognition with Heater Hood Sub-assembly

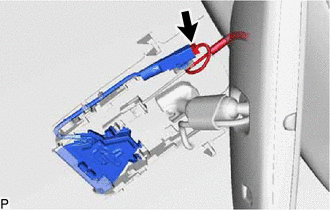

Disconnect the connector.

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

NOTE:

Do not pull the harness forcibly when disconnecting the connector.

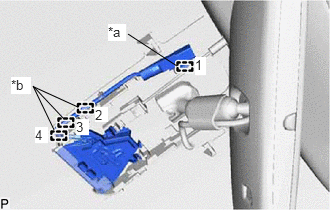

Disengage the clamp and 3 ribs.

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

*a	Clamp
*b	Rib

HINT:

Disengage the clamp and ribs in the order shown in the illustration.

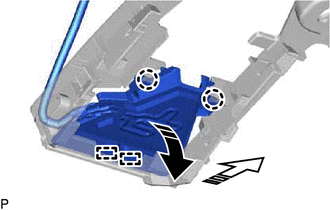

Pull the forward recognition with heater hood sub-assembly in the direction indicated by the arrow (1) shown in the illustration to disengage the 2 claws.

	Remove in this Direction (1)
	Remove in this Direction (2)

Pull the forward recognition with heater hood sub-assembly in the direction indicated by the arrow (2) shown in the illustration to disengage the 2 guides and remove the forward recognition with heater hood sub-assembly.
