Components [01/2019 - 09/2022]
WARNING: This page is about a different car, the 2022 Toyota Corolla, 2021 Toyota Corolla, and 2020 Toyota Corolla. However, it is still accessible from the selected car via links, so may be relevant.
Fig 1: Transmission Control Cable Replacement Components With Torque Specifications [01/2019 - 09/2022] (1 Of 4)
| Callout | Description | Callout | Description |
|---|---|---|---|
| *1 | NO. 1 ENGINE UNDER COVER ASSEMBLY | - | - |
| N.m (kgf/cm, ft.lbf): Specified torque | - | - |

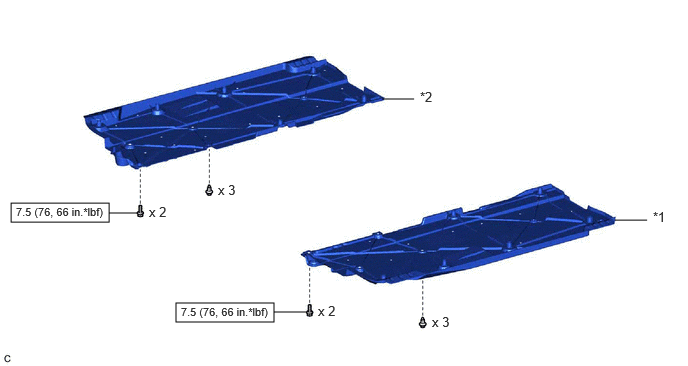

Fig 2: Transmission Control Cable Replacement Components With Torque Specifications [01/2019 - 09/2022] (2 Of 4)
| Callout | Description | Callout | Description |
|---|---|---|---|
| *1 | FRONT FLOOR COVER LH | *2 | FRONT FLOOR COVER RH |
| N.m (kgf/cm, ft.lbf): Specified torque | - | - |

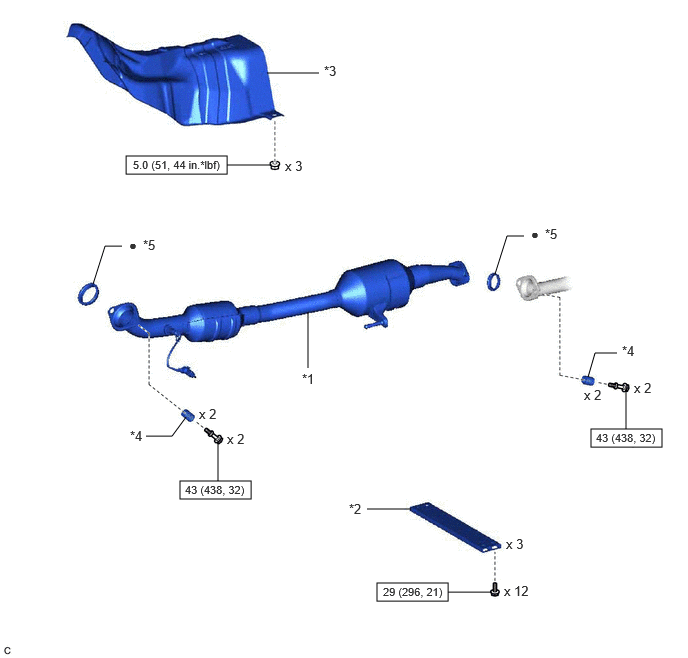

Fig 3: Transmission Control Cable Replacement Components With Torque Specifications [01/2019 - 09/2022] (3 Of 4)
| Callout | Description | Callout | Description |
|---|---|---|---|
| *1 | FRONT EXHAUST PIPE ASSEMBLY (TWC: Rear Catalyst) | *2 | FRONT FLOOR CENTER BRACE |
| *3 | FRONT NO. 1 FLOOR HEAT INSULATOR | *4 | COMPRESSION SPRING |
| *5 | GASKET | - | - |
| N.m (kgf/cm, ft.lbf): Specified torque | • | Non-reusable part |

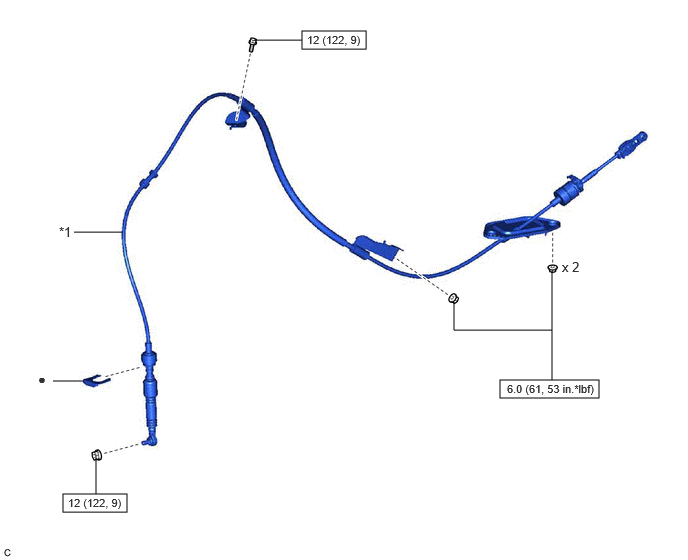

Fig 4: Transmission Control Cable Replacement Components With Torque Specifications [01/2019 - 09/2022] (4 Of 4)
| Callout | Description | Callout | Description |
|---|---|---|---|
| *1 | FLOOR SHIFT TRANSMISSION CONTROL SELECT CABLE | - | - |
| N.m (kgf/cm, ft.lbf): Specified torque | • | Non-reusable part |
