Removal [01/2019 - 09/2022]: Procedure

1. Fully apply the parking brake and chock a wheel.
   WARNING:

   • Make sure to apply the parking brake and chock a wheel before performing this procedure.
   • If the vehicle is not secure and the shift lever is moved to N, the vehicle may suddenly move, possibly resulting in an accident or serious injury.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

1. Using a screwdriver with its tip wrapped with protective tape, disengage the 2 claws to remove the shift lock release button cover from the position indicator housing assembly.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   *a	Protective Tape

   NOTE:

   Be careful not to damage the shift lock release button cover and position indicator housing assembly.

See step  1

Refer to REMOVAL [01/2019 - 09/2022]

1. Move the shift lever to N.

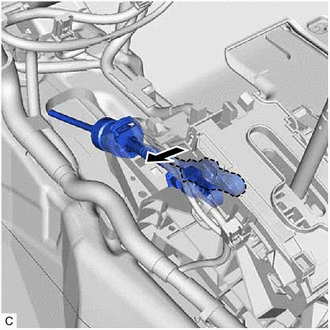

2. Disconnect the floor shift transmission control select cable from the transmission floor shift assembly.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

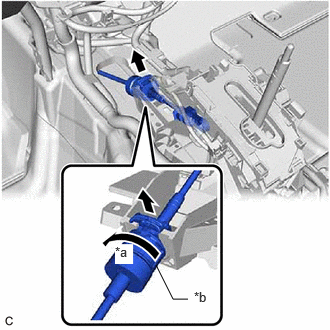

3. Rotate the lock nut counterclockwise approximately 180° and, while holding the lock nut in that position, disconnect the floor shift transmission control select cable from the transmission floor shift assembly.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   *a	Counterclockwise
   *b	Lock Nut

   NOTE:

   Do not forcibly pull the floor shift transmission control select cable into the cabin.

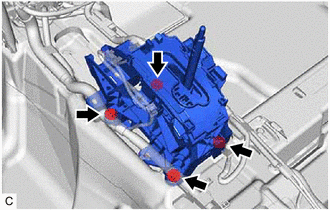

1. Remove the 4 bolts and disconnect the transmission floor shift assembly.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

2. Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

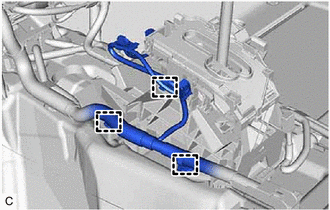

   Disengage the 3 clamps to disconnect the wire harness from the transmission floor shift assembly.

3. Disconnect the shift lock control ECU connector.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

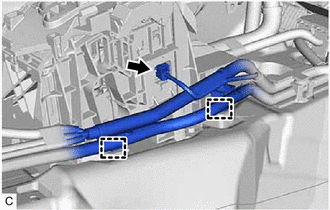

4. Disengage the 2 clamps to disconnect the wire harness from the transmission floor shift assembly.
5. Remove the transmission floor shift assembly.
