Disassembly [01/2019 - 09/2022]: Procedure
WARNING: This page is about a different car, the 2022 Toyota Corolla, 2021 Toyota Corolla, and 2020 Toyota Corolla. However, it is still accessible from the selected car via links, so may be relevant.
- REMOVE SHIFT LEVER HOUSING BRACKET SUB-ASSEMBLY

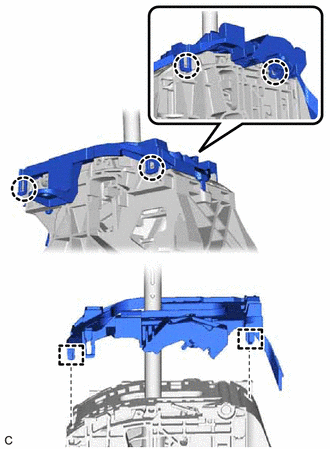

- Disengage the 4 claws and 2 guides to remove the shift lever housing bracket sub-assembly from the shift lock control unit assembly.
 Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
|
NOTE:
Do not damage the shift lever housing bracket sub-assembly.
