Components [01/2019 - 09/2022]
WARNING: This page is about a different car, the 2022 Toyota Corolla, 2021 Toyota Corolla, and 2020 Toyota Corolla. However, it is still accessible from the selected car via links, so may be relevant.
Fig 1: Shift Lever Position Sensor Replacement Components With Torque Specifications [01/2019 - 09/2022] (1 Of 2)
| Callout | Description | Callout | Description |
|---|---|---|---|
| *1 | NO. 1 ENGINE UNDER COVER ASSEMBLY | - | - |
| N.m (kgf/cm, ft.lbf): Specified torque | - | - |

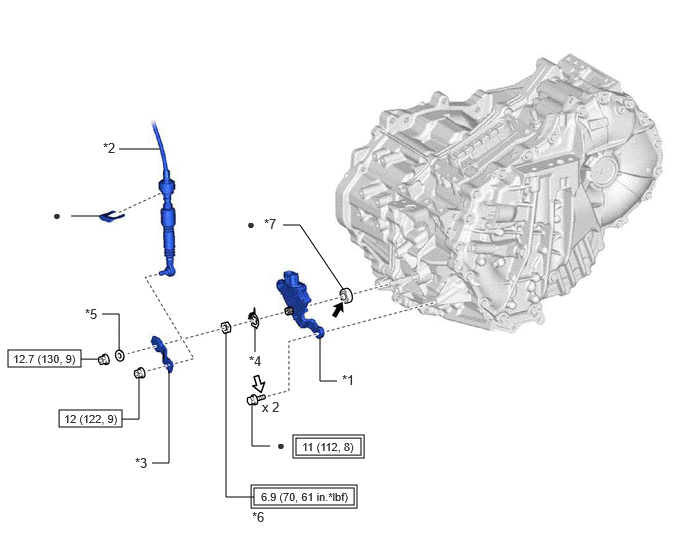

Fig 2: Shift Lever Position Sensor Replacement Components With Torque Specifications [01/2019 - 09/2022] (2 Of 2)
| Callout | Description | Callout | Description |
|---|---|---|---|
| *1 | SHIFT LEVER POSITION SENSOR | *2 | FLOOR SHIFT TRANSMISSION CONTROL SELECT CABLE |
| *3 | CONTROL SHAFT LEVER | *4 | LOCK PLATE |
| *5 | WASHER | *6 | LOCK NUT |
| *7 | SHIFT LEVER POSITION SENSOR SEAL | - | - |
| Tightening torque for "Major areas involving basic vehicle performance such as moving/turning/stopping": N.m (kgf/cm, ft.lbf) | N.m (kgf/cm, ft.lbf): Specified torque | ||
| • | Non-reusable part | MP grease | |
| Toyota Genuine Adhesive 1324, Three Bond 1324 or equivalent | - | - |
