Removal [04/2020 - 09/2022]: Procedure

WARNING: This page is about a different car, the 2022 Toyota Corolla, 2021 Toyota Corolla, and 2020 Toyota Corolla. However, it is still accessible from the selected car via links, so may be relevant.

REMOVE NO. 1 ENGINE UNDER COVER ASSEMBLY
Refer to PROCEDURE - Step 7
REMOVE INVERTER WITH CONVERTER ASSEMBLY
Refer to REMOVAL [04/2020 - 09/2022]
DISCONNECT INLET HYBRID RADIATOR HOSE
Refer to PROCEDURE - Step 29
DISCONNECT OUTLET NO. 1 HYBRID WATER PUMP HOSE
Refer to PROCEDURE - Step 30

REMOVE MOTOR COOLING COOLER

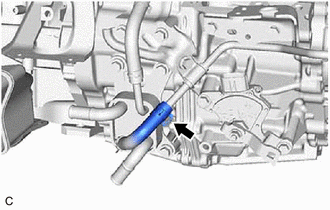

Slide the clip and disconnect the No. 1 motor cooling hose from the No. 1 motor cooling pipe.

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

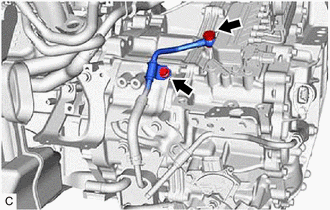

Remove the bolt and No. 1 oil cooler tube clamp from the hose bracket.

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Remove the union bolt and gasket to disconnect the No. 2 motor cooling pipe from the hybrid vehicle transaxle assembly.

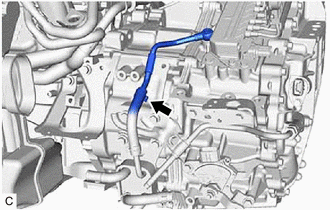

Slide the clip and remove the No. 2 motor cooling pipe from the No. 2 motor cooling hose.

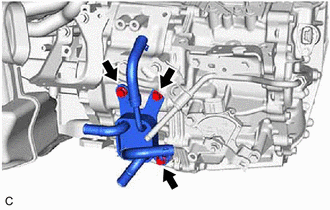

Remove the 3 bolts and motor cooling cooler from the hybrid vehicle transaxle assembly.

NOTE:

Make sure not to remove the No. 1 motor cooling hose and No. 2 motor cooling hose from the motor cooling cooler as the motor cooling cooler may be deformed.
