Components [01/2019 - 09/2022]
WARNING: This page is about a different car, the 2022 Toyota Corolla, 2021 Toyota Corolla, and 2020 Toyota Corolla. However, it is still accessible from the selected car via links, so may be relevant.
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
| Callout |
Description |
Callout |
Description |
| *1 |

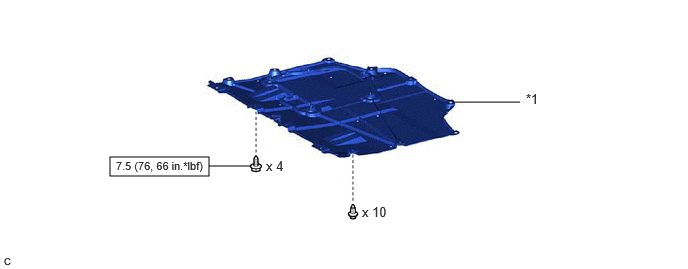

NO. 1 ENGINE UNDER COVER ASSEMBLY |
- |
- |
|
N.m (kgf/cm, ft.lbf): Specified torque |
- |
- |
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
| Callout |
Description |
Callout |
Description |
| *1 |

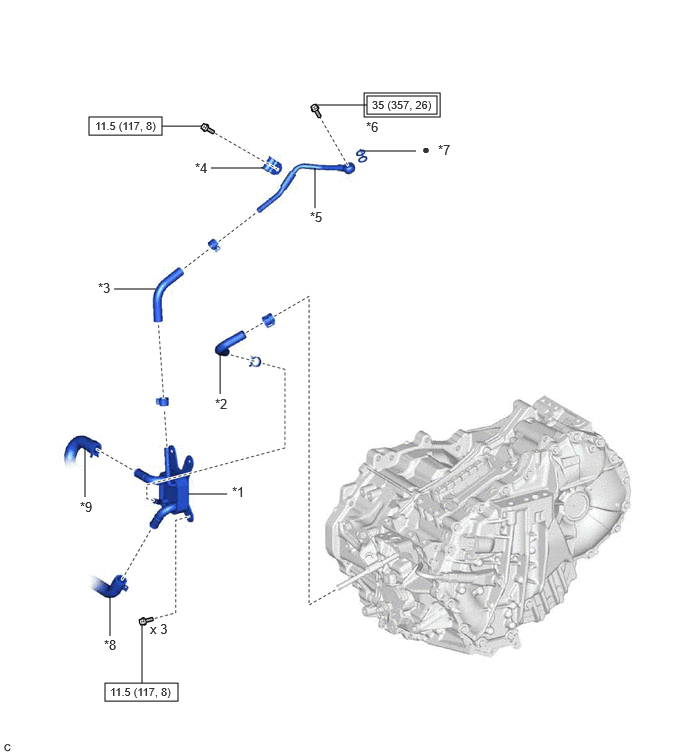

MOTOR COOLING COOLER |
*2 |
NO. 1 MOTOR COOLING HOSE |
| *3 |
NO. 2 MOTOR COOLING HOSE |
*4 |
NO. 1 OIL COOLER TUBE CLAMP |
| *5 |
NO. 2 MOTOR COOLING PIPE |
*6 |
UNION BOLT |
| *7 |
GASKET |
*8 |
INLET HYBRID RADIATOR HOSE |
| *9 |
OUTLET NO. 1 HYBRID WATER PUMP HOSE |
- |
- |
|
Tightening torque for "Major areas involving basic vehicle performance such as moving/turning/stopping": N.m (kgf/cm, ft.lbf) |
|
N.m (kgf/cm, ft.lbf): Specified torque |
| • |
Non-reusable part |
- |
- |
