Replacement [01/2019 - 04/2020]: Procedure

Refer to REMOVAL [01/2019 - 04/2020]

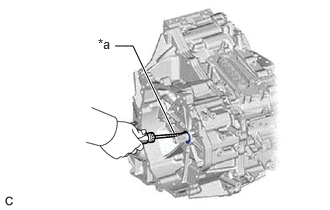

1. Using a screwdriver with its tip wrapped with protective tape, remove the input shaft type T oil seal from the hybrid vehicle transaxle assembly.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   *a	Protective Tape

   NOTE:

   Be careful not to damage the input shaft assembly or hybrid vehicle transaxle assembly.

1. Coat the lip of a new input shaft type T oil seal with a small amount of MP grease.

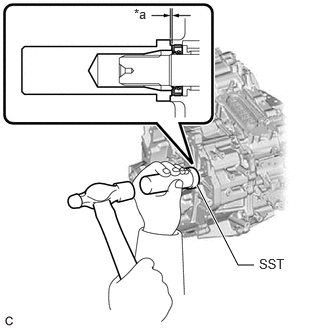

2. Using SST and a hammer, install the input shaft type T oil seal to the hybrid vehicle transaxle assembly.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   *a

   Depth

   • SST: 09388-40010

   Standard Depth

   1.0 to 1.8 mm (0.0394 to 0.0709 in.)

   NOTE:

   • Do not allow foreign matter to attach to the lip of the input shaft type T oil seal.
   • Do not install the input shaft type T oil seal at an angle.

Refer to INSTALLATION [01/2019 - 04/2020]
