Section 42 (Hybrid Transaxle System (P610) - Service Information)
>>
Input Shaft Oil Seal
>>
Components [01/2019 - 09/2022]
Components [01/2019 - 09/2022]
WARNING:
This page is about a different car, the 2022 Toyota Corolla, 2021 Toyota Corolla, and 2020 Toyota Corolla. However, it is still accessible from the selected car via links, so may be relevant.

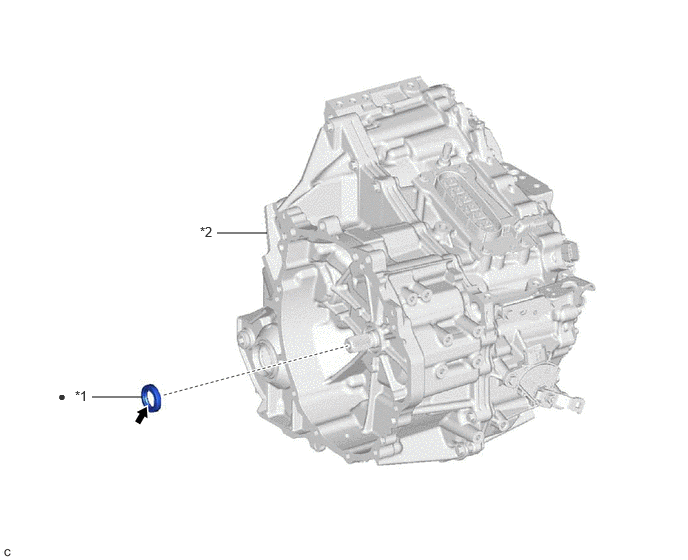

Fig 1: Input Shaft Oil Seal Replacement Components [01/2019 - 09/2022]
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Callout
Description
Callout
Description
*1
INPUT SHAFT TYPE T OIL SEAL
*2
HYBRID VEHICLE TRANSAXLE ASSEMBLY
•
Non-reusable part
MP grease
