Replacement [01/2019 - 09/2022]: Procedure

WARNING: This page is about a different car, the 2022 Toyota Corolla, 2021 Toyota Corolla, and 2020 Toyota Corolla. However, it is still accessible from the selected car via links, so may be relevant.

REMOVE FRONT DRIVE SHAFT ASSEMBLY
Refer to REMOVAL [01/2019 - 09/2022]

REMOVE FRONT DRIVE SHAFT OIL SEAL LH

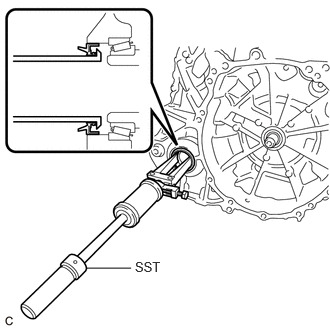

Using SST, remove the front drive shaft oil seal LH from the hybrid vehicle transaxle assembly.

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

SST: 09308-00010

NOTE:

Be careful not to damage the hybrid vehicle transaxle assembly.

REMOVE FRONT DRIVE SHAFT OIL SEAL RH

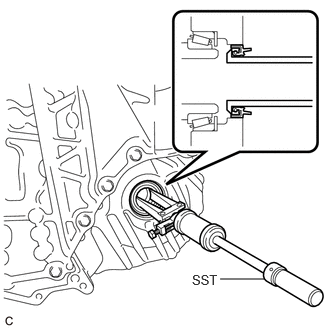

Using SST, remove the front drive shaft oil seal RH from the hybrid vehicle transaxle assembly.

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

SST: 09308-00010

NOTE:

Be careful not to damage the hybrid vehicle transaxle assembly.

INSTALL FRONT DRIVE SHAFT OIL SEAL RH

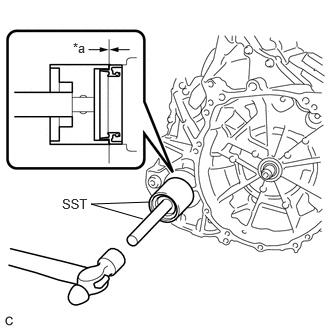

Using SST and a hammer, install a new front drive shaft oil seal RH to the hybrid vehicle transaxle assembly.

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Depth

SST: 09710-30050
SST: 09950-70010
1. 09951-07100

Standard Depth

-0.5 to 0.5 mm (-0.0197 to 0.0197 in.)

NOTE:

Do not allow foreign matter to attach to the lip of the front drive shaft oil seal RH.
Do not install the front drive shaft oil seal RH at an angle.

Coat the lip of the front drive shaft oil seal RH with a small amount of MP grease.

INSTALL FRONT DRIVE SHAFT OIL SEAL LH

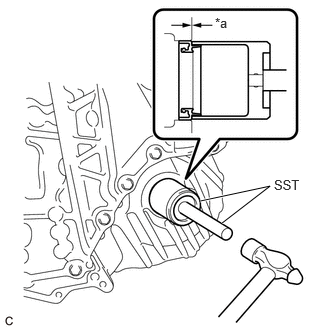

Using SST and a hammer, install a new front drive shaft oil seal LH to the hybrid vehicle transaxle assembly.

Depth

SST: 09649-17010
SST: 09950-70010
1. 09951-07100

Standard Depth

-0.5 to 0.5 mm (-0.0197 to 0.0197 in.)

NOTE:

Do not allow foreign matter to attach to the lip of the front drive shaft oil seal LH.
Do not install the front drive shaft oil seal LH at an angle.

Coat the lip of the front drive shaft oil seal LH with a small amount of MP grease.

INSTALL FRONT DRIVE SHAFT ASSEMBLY
Refer to INSTALLATION [01/2019 - 09/2022]
