Components [01/2019 - 09/2022]
WARNING: This page is about a different car, the 2022 Toyota Corolla, 2021 Toyota Corolla, and 2020 Toyota Corolla. However, it is still accessible from the selected car via links, so may be relevant.
Fig 1: Hybrid Transaxle Fluid Replacement Components With Torque Specifications [01/2019 - 09/2022] (1 Of 2)
| Callout | Description | Callout | Description |
|---|---|---|---|
| *1 | NO. 1 ENGINE UNDER COVER ASSEMBLY | - | - |
| N.m (kgf/cm, ft.lbf): Specified torque | - | - |

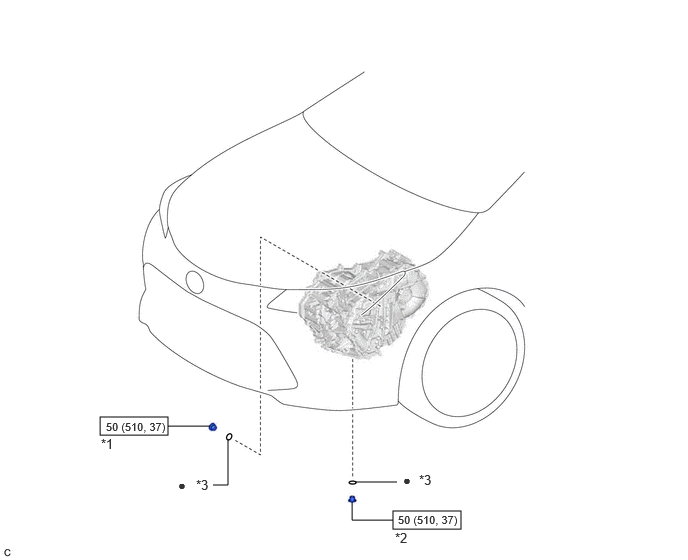

Fig 2: Hybrid Transaxle Fluid Replacement Components With Torque Specifications [01/2019 - 09/2022] (2 Of 2)
| Callout | Description | Callout | Description |
|---|---|---|---|
| *1 | FILLER PLUG | *2 | DRAIN PLUG |
| *3 | GASKET | - | - |
| N.m (kgf/cm, ft.lbf): Specified torque | • | Non-reusable part |
