Components [09/2022 - 09/2024]

WARNING: This page is about a different car, the 2025 Toyota GR Corolla, 2024 Toyota GR Corolla, and 2023 Toyota GR Corolla. However, it is still accessible from the selected car via links, so may be relevant.

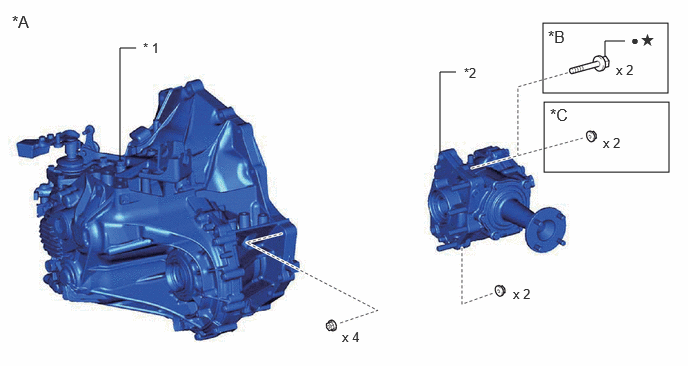

Fig 1: Transfer Assembly Replacement Components [09/2022 - 09/2024] (1 Of 6)
GTY1115990Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Callout Description Callout Description
*A for Removal *B Type A
*C Type B - -
*1 MANUAL TRANSAXLE ASSEMBLY *2 TRANSFER ASSEMBLY
• Non-reusable part * Precoated part

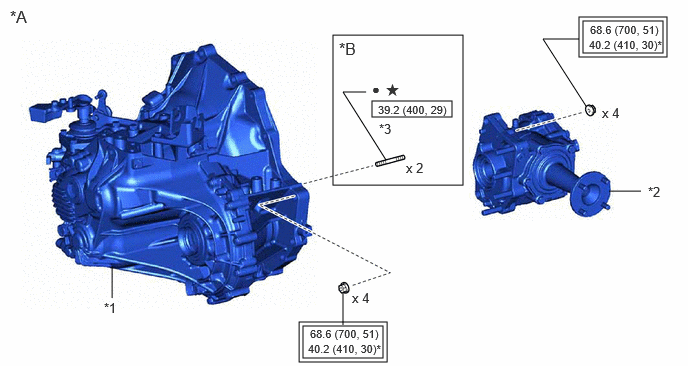

Fig 2: Transfer Assembly Replacement Components With Torque Specifications [09/2022 - 09/2024] (2 Of 6)
GTY1115713Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Callout Description Callout Description
*A for Installation *B Type A
*1 MANUAL TRANSAXLE ASSEMBLY *2 TRANSFER ASSEMBLY
*3 TRANSFER AND TRANSAXLE SETTING STUD BOLT - -
Tightening torque for "Major areas involving basic vehicle performance such as moving/turning/stopping": N.m (kgf/cm, ft.lbf) N.m (kgf/cm, ft.lbf): Specified torque
* For use with SST and union nut wrench • Non-reusable part
* Precoated part - -

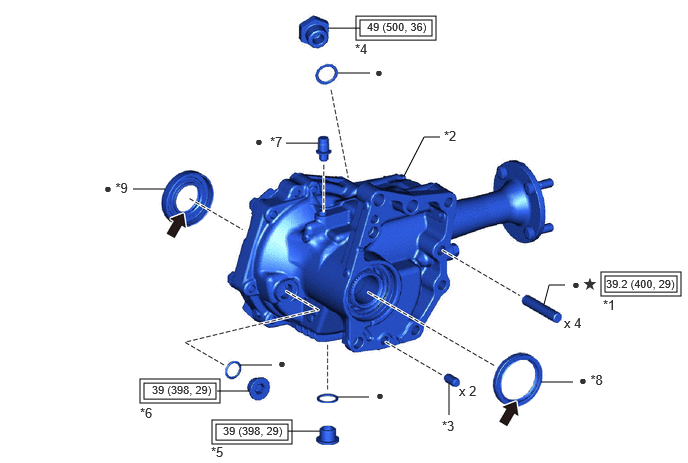

Fig 3: Transfer Assembly Replacement Components With Torque Specifications [09/2022 - 09/2024] (3 Of 6)
GTY1116128Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Callout Description Callout Description
*1 TRANSFER AND TRANSAXLE SETTING STUD BOLT *2 TRANSFER ASSEMBLY
*3 TRANSFER CASE STRAIGHT PIN *4 NO. 1 TRANSFER CASE PLUG
*5 TRANSFER DRAIN PLUG *6 TRANSFER FILLER PLUG
*7 TRANSFER CASE BREATHER PLUG *8 TRANSFER CASE OIL SEAL
*9 TRANSFER CASE OIL SEAL RH - -
Tightening torque for "Major areas involving basic vehicle performance such as moving/turning/stopping": N.m (kgf/cm, ft.lbf) • Non-reusable part
MP Grease * Precoated part

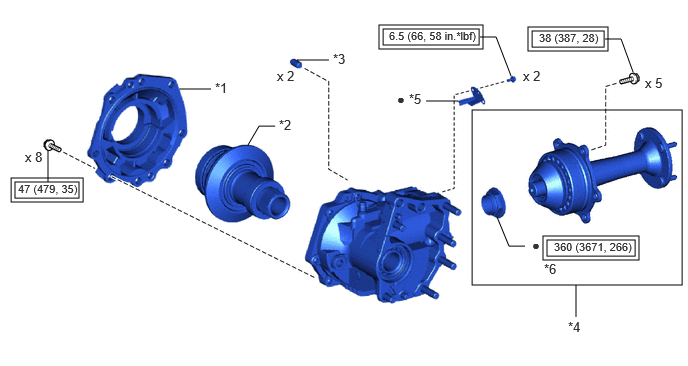

Fig 4: Transfer Assembly Replacement Components With Torque Specifications [09/2022 - 09/2024] (4 Of 6)
GTY1109454Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Callout Description Callout Description
*1 NO. 1 TRANSFER CASE COVER *2 TRANSFER RING GEAR
*3 TRANSFER CASE STRAIGHT PIN *4 REAR TRANSFER OUTPUT SHAFT SUB-ASSEMBLY
*5 BREATHER OIL DEFLECTOR *6 TRANSFER GEAR NUT
Tightening torque for "Major areas involving basic vehicle performance such as moving/turning/stopping": N.m (kgf/cm, ft.lbf) • Non-reusable part

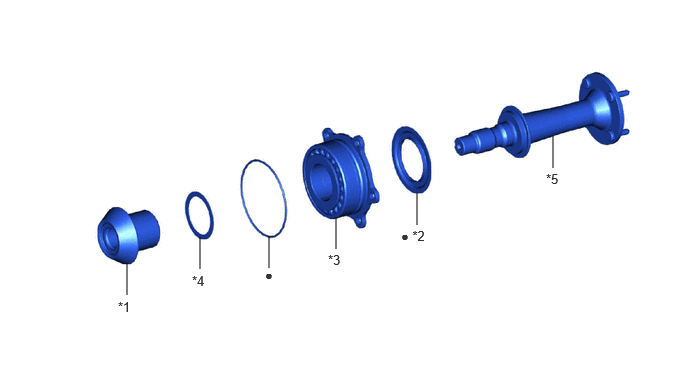

Fig 5: Transfer Assembly Replacement Components [09/2022 - 09/2024] (5 Of 6)
GTY1109452Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Callout Description Callout Description
*1 TRANSFER DRIVEN PINION *2 REAR TRANSFER OUTPUT SHAFT DUST DEFLECTOR
*3 FRONT TRANSFER DRIVEN PINION BEARING *4 TRANSFER OUTPUT SHAFT WASHER
*5 TRANSFER OUTPUT SHAFT - -
• Non-reusable part - -

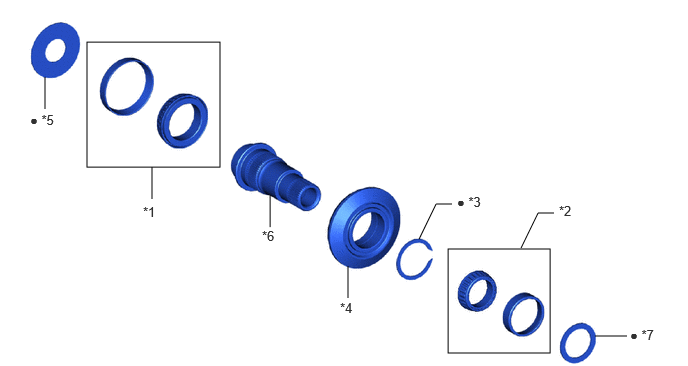

Fig 6: Transfer Assembly Replacement Components [09/2022 - 09/2024] (6 Of 6)
GTY1111349Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Callout Description Callout Description
*1 RING GEAR MOUNTING CASE BEARING RH *2 RING GEAR MOUNTING CASE BEARING LH
*3 SHAFT SNAP RING *4 TRANSFER RING GEAR
*5 NO. 2 TRANSFER RING GEAR MOUNTING CASE WASHER *6 TRANSFER RING GEAR MOUNTING CASE
*7 NO. 1 RING GEAR MOUNTING CASE WASHER - -
• Non-reusable part - -
