Components [09/2022 - 11/2022]
WARNING: This page is about a different car, the 2025 Toyota GR Corolla, 2024 Toyota GR Corolla, and 2023 Toyota GR Corolla. However, it is still accessible from the selected car via links, so may be relevant.
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
| Callout |
Description |
Callout |
Description |

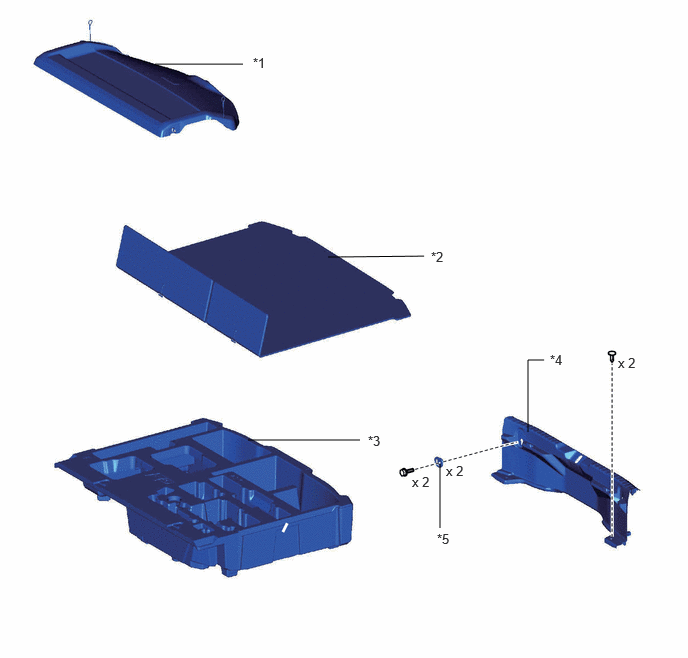

| *1 |
PACKAGE TRAY TRIM PANEL ASSEMBLY |
*2 |
DECK BOARD ASSEMBLY |
| *3 |
SPARE WHEEL CUSHION |
*4 |
REAR DECK TRIM COVER |
| *5 |
LUGGAGE HOLD BELT STRIKER ASSEMBLY |
- |
- |
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
| Callout |
Description |
Callout |
Description |

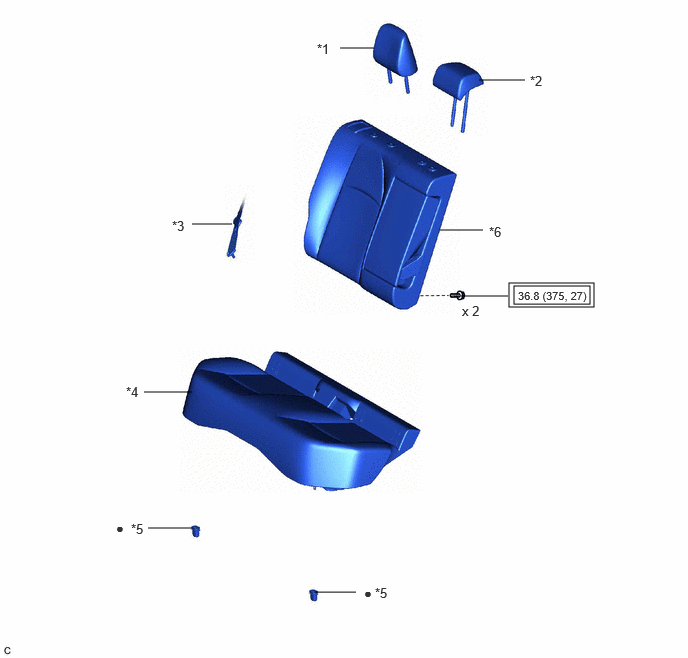

| *1 |
REAR SEAT HEADREST ASSEMBLY |
*2 |
REAR SEAT CENTER HEADREST ASSEMBLY |
| *3 |
REAR SEAT CENTER LAP TYPE BELT ASSEMBLY |
*4 |
REAR SEAT CUSHION ASSEMBLY |
| *5 |
REAR SEAT CUSHION LOCK HOOK |
*6 |
REAR SEATBACK ASSEMBLY RH |
|
Tightening torque for "Major areas involving basic vehicle performance such as moving/turning/stopping": N.m (kgf/cm, ft.lbf) |
• |
Non-reusable part |
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
| Callout |
Description |
Callout |
Description |

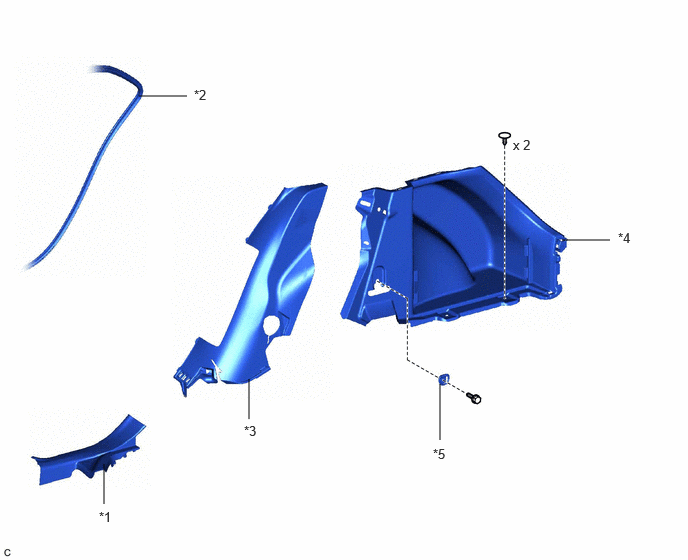

| *1 |
REAR DOOR SCUFF PLATE RH |
*2 |
REAR DOOR OPENING TRIM WEATHERSTRIP RH |
| *3 |
REAR SEAT SIDE GARNISH RH |
*4 |
DECK TRIM SIDE PANEL ASSEMBLY RH |
| *5 |
LUGGAGE HOLD BELT STRIKER ASSEMBLY |
- |
- |
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

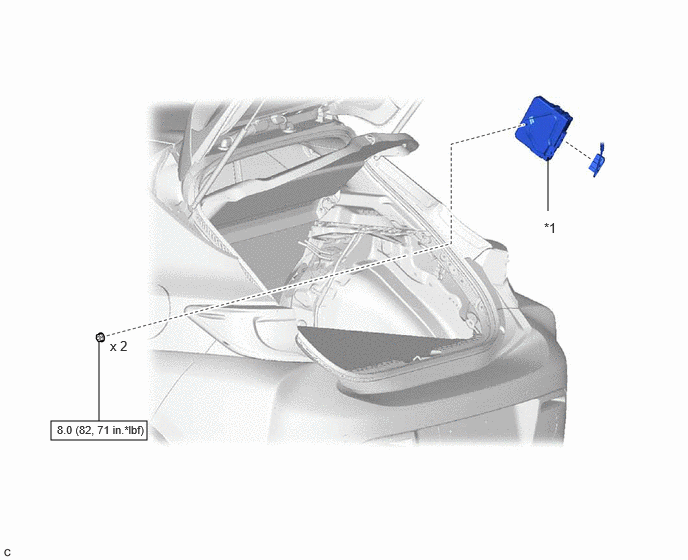

| Callout |
Description |
Callout |
Description |
| *1 |
4WD ECU ASSEMBLY |
- |
- |
|
N.m (kgf/cm, in.lbf): Specified torque |
- |
- |
