Parts Location [09/2019 - 04/2020]: Illustration
WARNING: This page is about a different car, the 2022 Toyota Corolla, 2021 Toyota Corolla, and 2020 Toyota Corolla. However, it is still accessible from the selected car via links, so may be relevant.

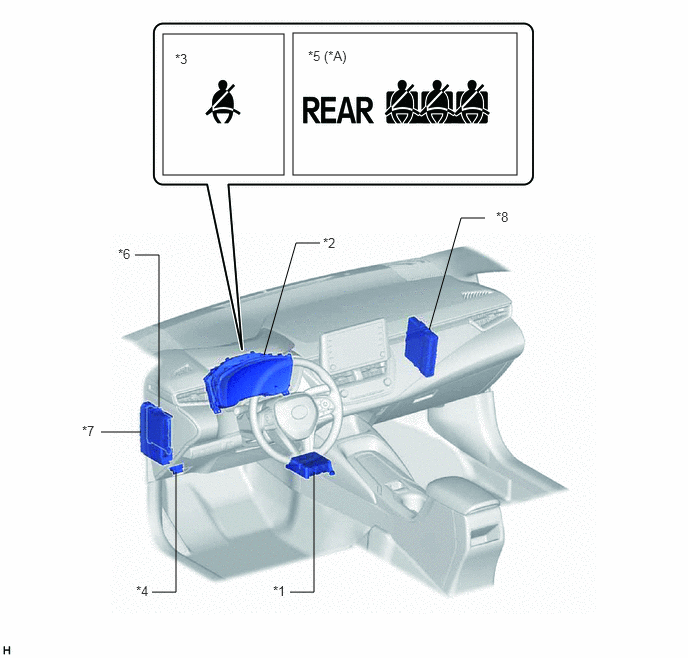

| *A | w/ Rear Seat Belt Warning | - | - |
| *1 | AIRBAG SENSOR ASSEMBLY | *2 | COMBINATION METER ASSEMBLY - SEAT BELT WARNING BUZZER |
| *3 | SEAT BELT WARNING LIGHT | *4 | DLC3 |
| *5 | REAR SEAT BELT WARNING LIGHT | *6 | MAIN BODY ECU (MULTIPLEX NETWORK BODY ECU) |
| *7 | INSTRUMENT PANEL JUNCTION BLOCK ASSEMBLY | *8 | HYBRID VEHICLE CONTROL ECU ASSEMBLY |

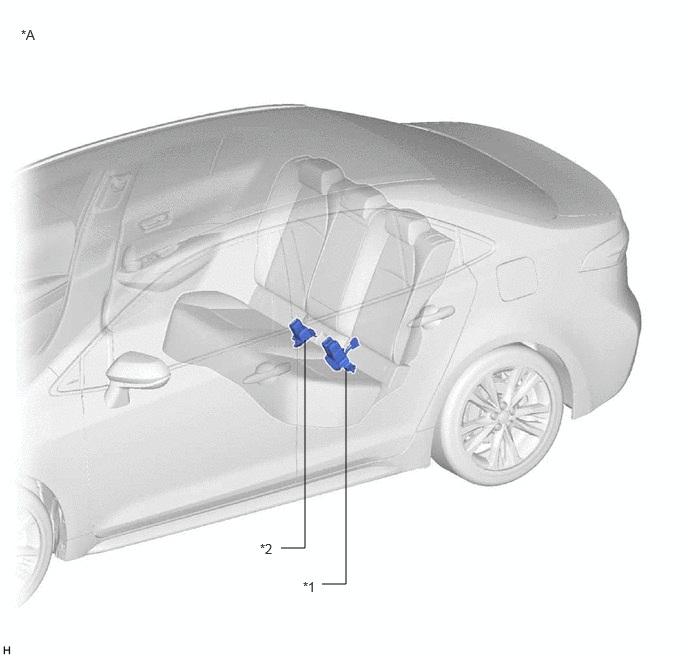

| *1 | OCCUPANT DETECTION ECU | *2 | FRONT SEAT INNER BELT ASSEMBLY LH |
| *3 | FRONT SEAT INNER BELT ASSEMBLY RH | *4 | FRONT OCCUPANT CLASSIFICATION SENSOR LH |
| *5 | REAR OCCUPANT CLASSIFICATION SENSOR LH | - | - |
