DTC P2822: Pressure Control Solenoid "J" Electrical (Shift Solenoid Valve SLP) [01/2019 - 11/2022]: Description
WARNING: This page is about a different car, the 2022 Toyota Corolla, 2021 Toyota Corolla, 2020 Toyota Corolla, and 2019 Toyota Corolla. However, it is still accessible from the selected car via links, so may be relevant.
According to current from the ECM, the shift solenoid valve SLP controls primary pulley pressure in accordance with the requested gear ratio to perform gear ratio changes.

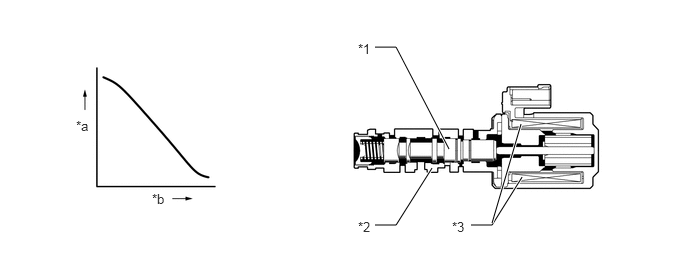

| *1 | Spool Valve | *2 | Sleeve |
| *3 | Solenoid Coil | - | - |
| *a | Hydraulic Pressure | *b | Current Flow to Solenoid |
| DTC No. | Detection Item | DTC Detection Condition | Trouble Area | MIL | Memory |
|---|---|---|---|---|---|
| P2822 | Pressure Control Solenoid "J" Electrical (Shift Solenoid Valve SLP) | While the vehicle is driven, an open or a short is detected in the shift solenoid valve SLP circuit for 1 second or more (1-trip detection logic). |
|
Comes on | DTC stored |
