DTC P2759: Torque Converter Clutch Pressure Control Solenoid Control Circuit Electrical (Shift Solenoid Valve SLU) [01/2019 - 11/2022]: Description
WARNING: This page is about a different car, the 2022 Toyota Corolla, 2021 Toyota Corolla, 2020 Toyota Corolla, and 2019 Toyota Corolla. However, it is still accessible from the selected car via links, so may be relevant.
The ECM uses the shift solenoid valve SLU to perform forward and reverse clutch control or lock-up clutch control.

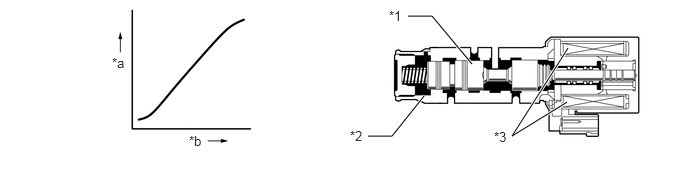

| *1 | Spool Valve | *2 | Sleeve |
| *3 | Solenoid Coil | - | - |
| *a | Hydraulic Pressure | *b | Current Flow to Solenoid |
| DTC No. | Detection Item | DTC Detection Condition | Trouble Area | MIL | Memory |
|---|---|---|---|---|---|
| P2759 | Torque Converter Clutch Pressure Control Solenoid Control Circuit Electrical (Shift Solenoid Valve SLU) | While the vehicle is driven, there is an open or short in the shift solenoid valve SLU circuit for 1 second or more (1-trip detection logic). |
|
Comes on | DTC stored |
