Removal [09/2022 - 11/2022]: Procedure

1. Fully apply the parking brake and chock a wheel.
   WARNING:

   • Make sure to apply the parking brake and chock a wheel before performing this procedure.

     Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   • If the vehicle is not secure and the shift lever is moved to neutral, the vehicle may suddenly move, possibly resulting in an accident or serious injury.

Refer to REMOVAL [09/2022 - 11/2022]

1. Remove the clip and disconnect the transmission control select cable from the floor shift lever assembly.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

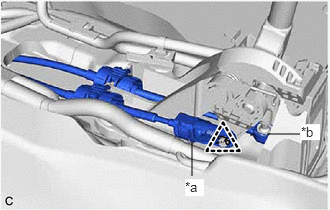

   *a	Transmission Control Select Cable
   *b	Transmission Control Shift Cable

2. Disconnect the transmission control shift cable from the floor shift lever assembly.

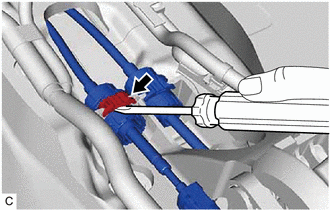

3. Using a screwdriver, pull out the stopper of the transmission control select cable.
   NOTE:

   Do not remove the stopper. If it is removed, reinstall it to its original position.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

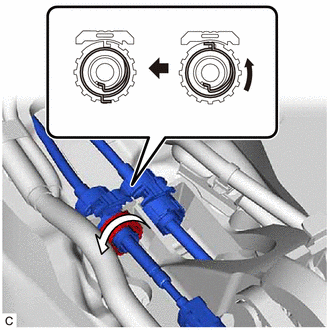

4. Rotate the nut counterclockwise approximately 180° and, while holding the nut in that position, disconnect the transmission control select cable from the floor shift lever assembly.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   NOTE:

   • Do not rotate the nut excessively as the internal spring may jump out and the transmission control cable will not be reusable.
   • Do not forcibly pull the transmission control cable assembly into the cabin.
5. Disconnect the transmission control shift cable from the floor shift lever assembly in the same manner as the transmission control select cable.

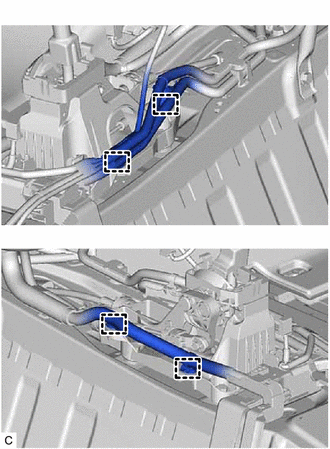

1. Disengage the 4 clamps to disconnect the wire harness from the floor shift lever assembly.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

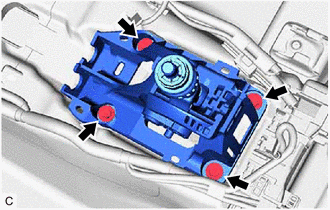

1. Remove the 4 bolts and floor shift lever assembly from the vehicle body.
