Removal [06/2018 - 03/2019]: Procedure

1. Fully apply the parking brake and chock a wheel.
   WARNING:

   • Make sure to apply the parking brake and chock a wheel before performing this procedure.

     Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   • If the vehicle is not secure and the shift lever is moved to neutral, the vehicle may suddenly move, possibly resulting in an accident or serious injury.

Refer to REMOVAL [06/2018 - 01/2019] , or refer to REMOVAL [01/2019 - 09/2022]

1. Remove the clip and disconnect the transmission control select cable from the floor shift lever assembly.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   *a	Transmission Control Select Cable
   *b	Transmission Control Shift Cable

2. Disconnect the transmission control shift cable from the floor shift lever assembly.
3. Rotate the lock nut counterclockwise approximately 180° and, while holding the lock nut in that position, disconnect the transmission control select cable from the floor shift lever assembly.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   *a	Counterclockwise

   NOTE:

   Do not forcibly pull the transmission control cable assembly into the cabin.

4. Disconnect the transmission control shift cable from the floor shift lever assembly in the same manner as the transmission control select cable.

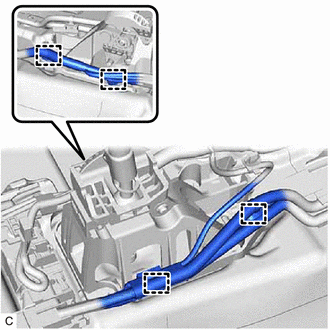

1. Disengage the 4 clamps and disconnect the wire harness from the floor shift lever assembly.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

2. Remove the 4 bolts and floor shift lever assembly from the vehicle body.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
