Components [09/2022 - 11/2022]

WARNING: This page is about a different car, the 2022 Toyota Corolla, 2021 Toyota Corolla, 2020 Toyota Corolla, and 2019 Toyota Corolla. However, it is still accessible from the selected car via links, so may be relevant.

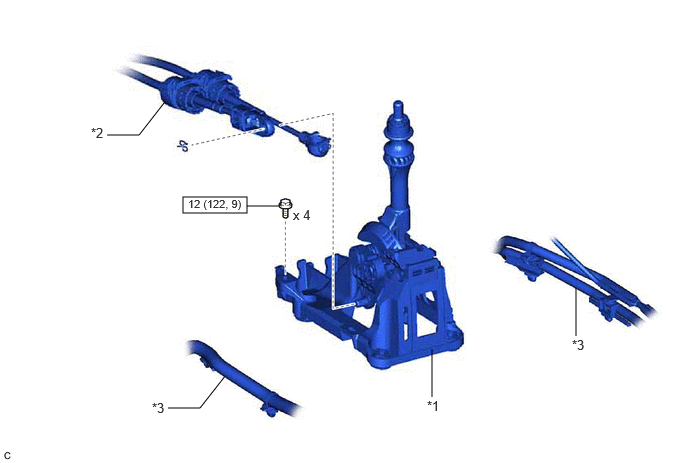

Fig 1: Shift Lever Assembly Replacement Components With Torque Specifications [09/2022 - 11/2022]

Callout	Description	Callout	Description
*1	FLOOR SHIFT SHIFT LEVER ASSEMBLY	*2	TRANSMISSION CONTROL CABLE ASSEMBLY
*3	WIRE HARNESS	-	-
	N.m (kgf/cm, ft.lbf): Specified torque	-	-
