Removal [01/2019 - 11/2022]: Procedure

WARNING: This page is about a different car, the 2022 Toyota Corolla, 2021 Toyota Corolla, 2020 Toyota Corolla, and 2019 Toyota Corolla. However, it is still accessible from the selected car via links, so may be relevant.
  1. REMOVE RADIATOR SUPPORT OPENING COVER (for Hatchback)

    Refer to PROCEDURE - Step 1 [06/2018 - 09/2022] , or refer to PROCEDURE - Step 1 [09/2022 - ]

  2. REMOVE RADIATOR SUPPORT OPENING COVER (w/ Illumination)

    Refer to PROCEDURE - Step 1 [01/2019 - 03/2019] , or refer to PROCEDURE - Step 1 [03/2019 - 09/2022] , or refer to PROCEDURE - Step 1 [09/2022 - 11/2022]

  3. REMOVE INLET NO. 1 AIR CLEANER

    Refer to PROCEDURE - Step 5 [06/2018 - 09/2019] , or refer to PROCEDURE - Step 6 [09/2019 - 09/2022] , or refer to PROCEDURE - Step 6 [09/2022 - 11/2022]

  4. REMOVE AIR CLEANER CAP WITH AIR CLEANER HOSE

    Refer to PROCEDURE - Step 2 [06/2018 - 09/2019] , or refer to PROCEDURE - Step 3 [09/2019 - ]

  5. REMOVE AIR CLEANER FILTER ELEMENT SUB-ASSEMBLY

    Refer to PROCEDURE - Step 2

  6. REMOVE AIR CLEANER CASE SUB-ASSEMBLY

    Refer to PROCEDURE - Step 7 [01/2019 - 03/2019] , or refer to PROCEDURE - Step 7 [03/2019 - 09/2022] , or refer to PROCEDURE - Step 7 [09/2022 - 11/2022]

  7. REMOVE NEUTRAL POSITION SWITCH

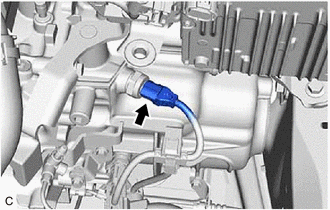

    1. Disconnect the neutral position switch connector.
      GTY869894Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

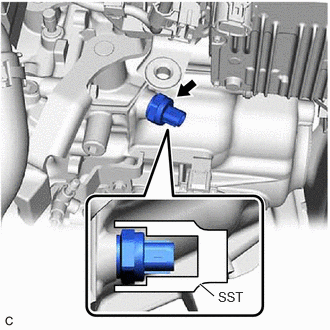

    2. Using SST, remove the neutral position switch and gasket from the manual transmission case.
      • SST: 09816-30010
      GTY935447Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
