Components [06/2018 - 11/2022]
WARNING: This page is about a different car, the 2022 Toyota Corolla, 2021 Toyota Corolla, 2020 Toyota Corolla, and 2019 Toyota Corolla. However, it is still accessible from the selected car via links, so may be relevant.

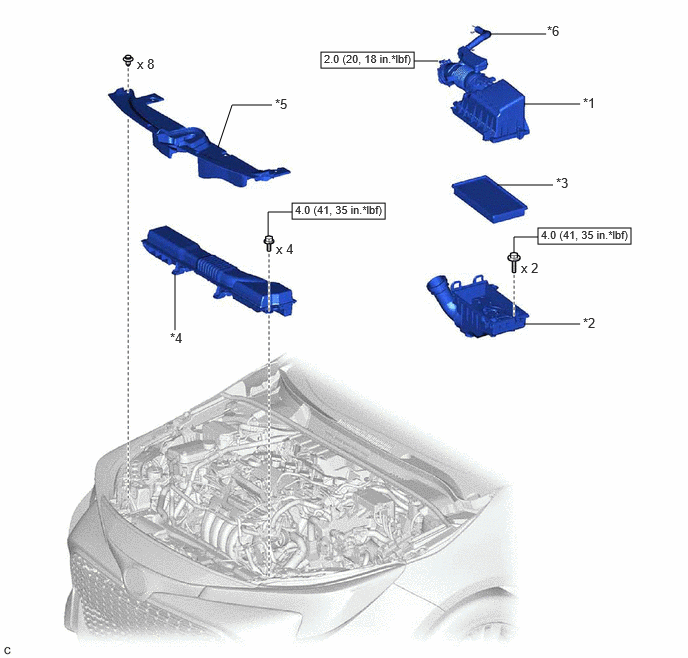

Fig 1: Neutral Position Switch Replacement Components With Torque Specifications [06/2018 - 11/2022] (1 Of 2)
| Callout | Description | Callout | Description |
|---|---|---|---|
| *1 | AIR CLEANER CAP WITH AIR CLEANER HOSE | *2 | AIR CLEANER CASE SUB-ASSEMBLY |
| *3 | AIR CLEANER FILTER ELEMENT SUB-ASSEMBLY | *4 | INLET NO. 1 AIR CLEANER |
| *5 | RADIATOR SUPPORT OPENING COVER | *6 | NO. 2 VENTILATION HOSE |
| N.m (kgf/cm, ft.lbf): Specified torque | - | - |

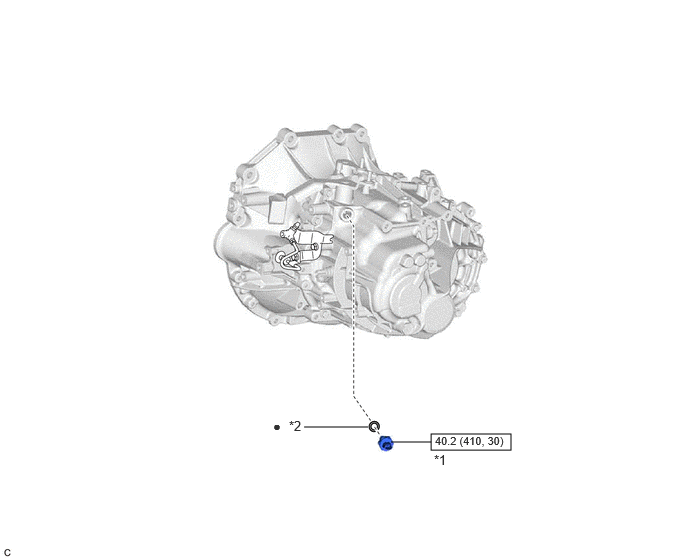

Fig 2: Neutral Position Switch Replacement Components With Torque Specifications [06/2018 - 11/2022] (2 Of 2)
| Callout | Description | Callout | Description |
|---|---|---|---|
| *1 | NEUTRAL POSITION SWITCH | *2 | GASKET |
| N.m (kgf/cm, ft.lbf): Specified torque | • | Non-reusable part |
