Components [06/2018 - 01/2019]
WARNING: This page is about a different car, the 2022 Toyota Corolla, 2021 Toyota Corolla, 2020 Toyota Corolla, and 2019 Toyota Corolla. However, it is still accessible from the selected car via links, so may be relevant.

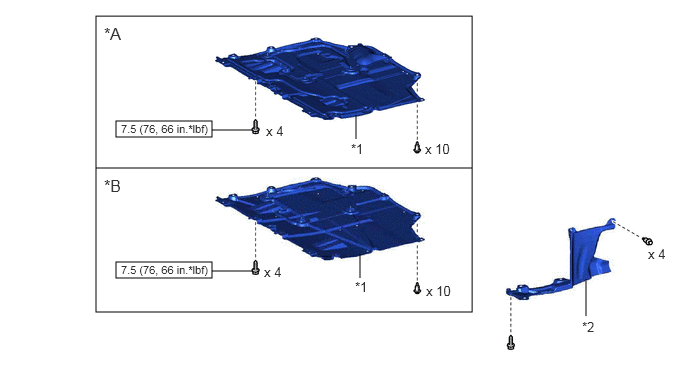

Fig 1: Manual Transaxle Oil Replacement Components With Torque Specifications [06/2018 - 01/2019] (1 Of 2)
| Callout | Description | Callout | Description |
|---|---|---|---|
| *A | Type A | *B | Type B |
| *1 | NO. 1 ENGINE UNDER COVER ASSEMBLY | *2 | REAR ENGINE UNDER COVER LH |
| N.m (kgf/cm, ft.lbf): Specified torque | - | - |
Fig 2: Manual Transaxle Oil Replacement Components With Torque Specifications [06/2018 - 01/2019] (2 Of 2)
| Callout | Description | Callout | Description |
|---|---|---|---|
| *1 | MANUAL TRANSMISSION FILLER PLUG | *2 | MANUAL TRANSMISSION DRAIN PLUG |
| *3 | GASKET | - | - |
| N.m (kgf/cm, ft.lbf): Specified torque | • | Non-reusable part |
