Components [06/2018 - 06/2021]
WARNING: This page is about a different car, the 2022 Toyota Corolla, 2021 Toyota Corolla, 2020 Toyota Corolla, and 2019 Toyota Corolla. However, it is still accessible from the selected car via links, so may be relevant.

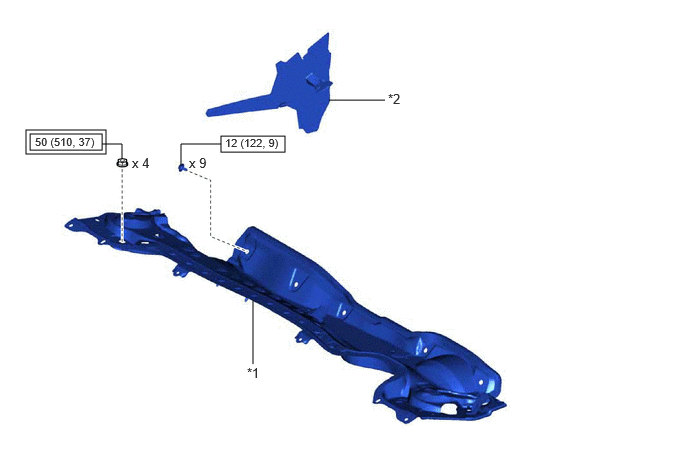

Fig 1: Manual Transaxle Assembly Replacement Components With Torque Specifications [06/2018 - 06/2021] (1 Of 11)
| Callout | Description | Callout | Description |
|---|---|---|---|
| *1 | OUTER COWL TOP PANEL SUB-ASSEMBLY | *2 | NO. 1 HEATER AIR DUCT SPLASH SHIELD SEAL |
| Tightening torque for "Major areas involving basic vehicle performance such as moving/turning/stopping": N.m (kgf/cm, ft.lbf) | N.m (kgf/cm, ft.lbf): Specified torque |

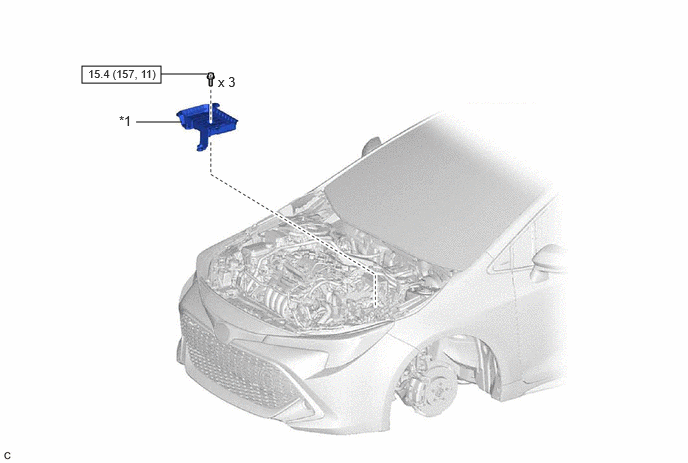

Fig 2: Manual Transaxle Assembly Replacement Components With Torque Specifications [06/2018 - 06/2021] (2 Of 11)
| Callout | Description | Callout | Description |
|---|---|---|---|
| *1 | BATTERY CLAMP SUB-ASSEMBLY | - | - |
| N.m (kgf/cm, ft.lbf): Specified torque | - | - |
Fig 3: Manual Transaxle Assembly Replacement Components With Torque Specifications [06/2018 - 06/2021] (3 Of 11)
| Callout | Description | Callout | Description |
|---|---|---|---|
| *A | Type A | *B | Type B |
| *1 | FRONT FLOOR COVER LH | *2 | FRONT FLOOR COVER RH |
| N.m (kgf/cm, ft.lbf): Specified torque | - | - |

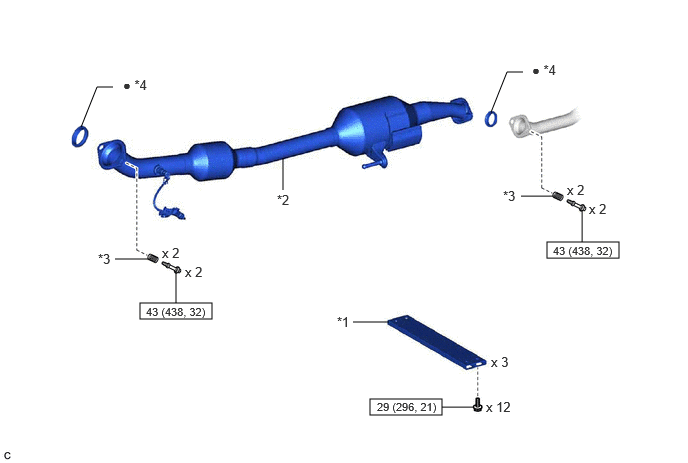

Fig 4: Manual Transaxle Assembly Replacement Components With Torque Specifications [06/2018 - 06/2021] (4 Of 11)
| Callout | Description | Callout | Description |
|---|---|---|---|
| *1 | FRONT FLOOR CENTER BRACE | *2 | FRONT EXHAUST PIPE ASSEMBLY (TWC: Rear Catalyst) |
| *3 | COMPRESSION SPRING | *4 | GASKET |
| N.m (kgf/cm, ft.lbf): Specified torque | • | Non-reusable part |

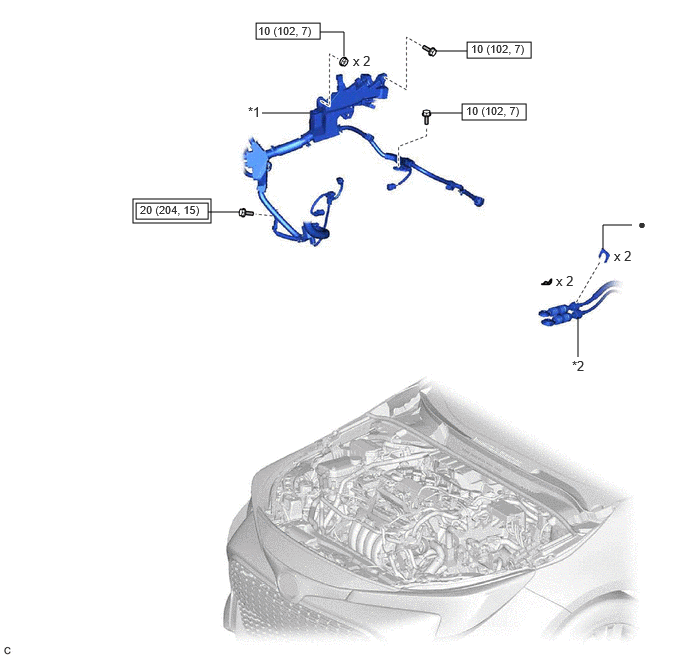

Fig 5: Manual Transaxle Assembly Replacement Components With Torque Specifications [06/2018 - 06/2021] (5 Of 11)
| Callout | Description | Callout | Description |
|---|---|---|---|
| *1 | WIRE HARNESS | *2 | TRANSMISSION CONTROL CABLE ASSEMBLY |
| Tightening torque for "Major areas involving basic vehicle performance such as moving/turning/stopping": N.m (kgf/cm, ft.lbf) | N.m (kgf/cm, ft.lbf): Specified torque | ||
| • | Non-reusable part | - | - |

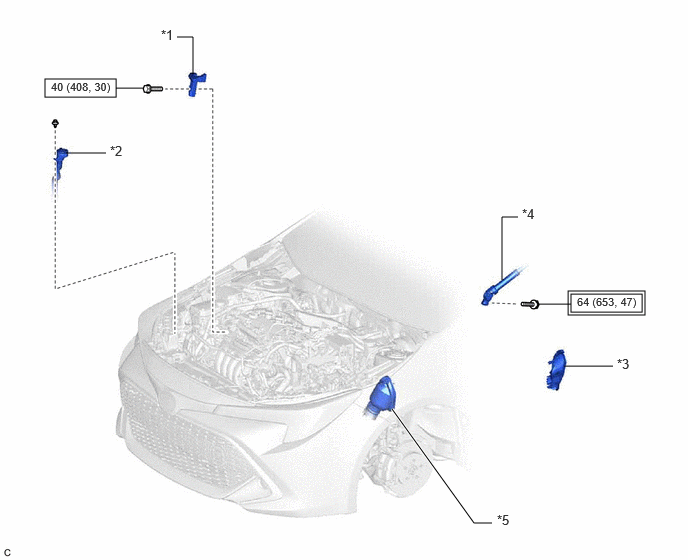

Fig 6: Manual Transaxle Assembly Replacement Components With Torque Specifications [06/2018 - 06/2021] (6 Of 11)
| Callout | Description | Callout | Description |
|---|---|---|---|
| *1 | FUEL DELIVERY GUARD | *2 | INLET HOSE |
| *3 | COLUMN HOLE COVER SILENCER SHEET | *4 | NO. 2 STEERING INTERMEDIATE SHAFT ASSEMBLY |
| *5 | NO. 1 STEERING COLUMN HOLE COVER SUB-ASSEMBLY | - | - |
| Tightening torque for "Major areas involving basic vehicle performance such as moving/turning/stopping": N.m (kgf/cm, ft.lbf) | N.m (kgf/cm, ft.lbf): Specified torque |

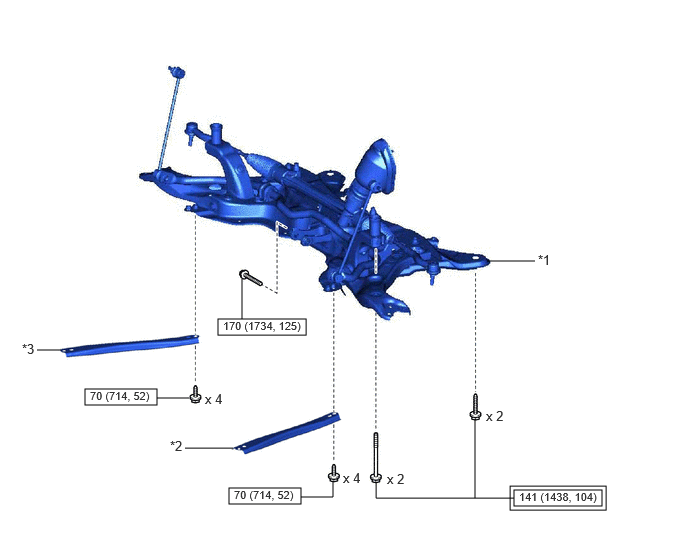

Fig 7: Manual Transaxle Assembly Replacement Components With Torque Specifications [06/2018 - 06/2021] (7 Of 11)
| Callout | Description | Callout | Description |
|---|---|---|---|
| *1 | FRONT SUSPENSION CROSSMEMBER SUB-ASSEMBLY | *2 | REAR SIDE RAIL REINFORCEMENT SUB-ASSEMBLY LH |
| *3 | REAR SIDE RAIL REINFORCEMENT SUB-ASSEMBLY RH | - | - |
| Tightening torque for "Major areas involving basic vehicle performance such as moving/turning/stopping": N.m (kgf/cm, ft.lbf) | N.m (kgf/cm, ft.lbf): Specified torque |

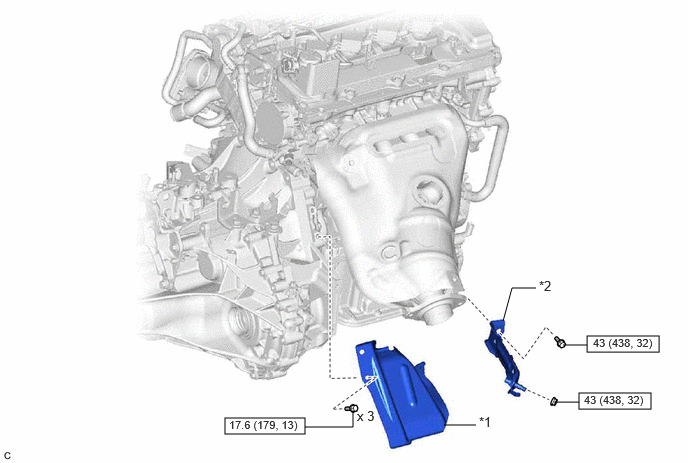

Fig 8: Manual Transaxle Assembly Replacement Components With Torque Specifications [06/2018 - 06/2021] (8 Of 11)
| Callout | Description | Callout | Description |
|---|---|---|---|
| *1 | DRIVE SHAFT HEAT INSULATOR SUB-ASSEMBLY | *2 | MANIFOLD STAY |
| N.m (kgf/cm, ft.lbf): Specified torque | - | - |

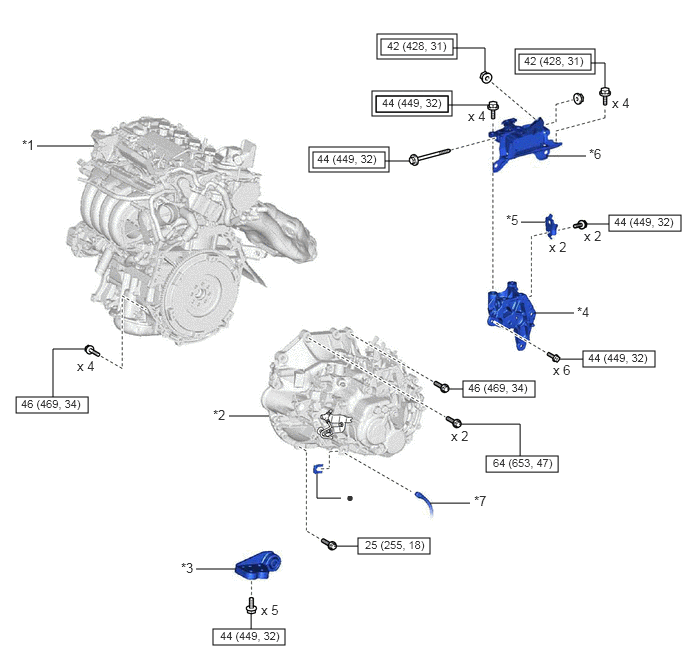

Fig 9: Manual Transaxle Assembly Replacement Components With Torque Specifications [06/2018 - 06/2021] (9 Of 11)
| Callout | Description | Callout | Description |
|---|---|---|---|
| *1 | ENGINE ASSEMBLY | *2 | MANUAL TRANSAXLE ASSEMBLY |
| *3 | NO. 2 ENGINE MOVING CONTROL ROD | *4 | ENGINE MOUNTING BRACKET LH |
| *5 | ENGINE MOUNTING STAY LH | *6 | ENGINE MOUNTING INSULATOR LH |
| *7 | NO. 1 CLUTCH HOSE | - | - |
| Tightening torque for "Major areas involving basic vehicle performance such as moving/turning/stopping": N.m (kgf/cm, ft.lbf) | N.m (kgf/cm, ft.lbf): Specified torque | ||
| • | Non-reusable part | - | - |

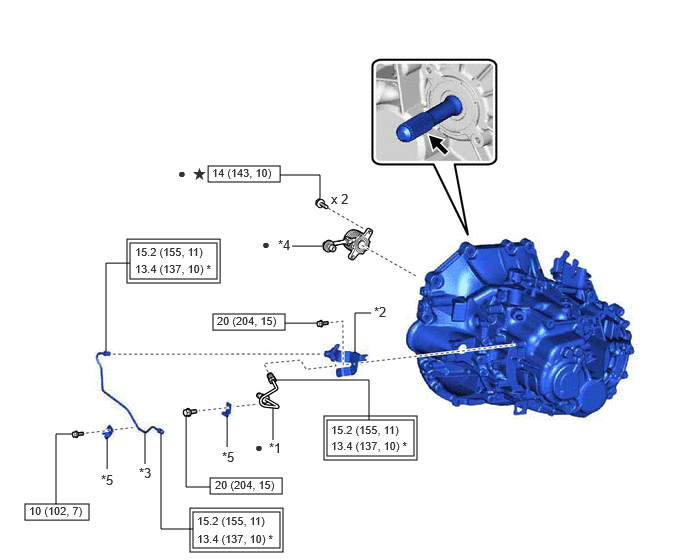

Fig 10: Manual Transaxle Assembly Replacement Components With Torque Specifications [06/2018 - 06/2021] (10 Of 11)
| Callout | Description | Callout | Description |
|---|---|---|---|
| *1 | CLUTCH RELEASE CYLINDER WITH BEARING ASSEMBLY TO BLEEDER TUBE | *2 | CLUTCH RELEASE BLEEDER SUB-ASSEMBLY |
| *3 | BLEEDER TO FLEXIBLE HOSE TUBE | *4 | CLUTCH RELEASE CYLINDER WITH BEARING ASSEMBLY |
| *5 | CLAMP | - | - |
| Tightening torque for "Major areas involving basic vehicle performance such as moving/turning/stopping": N.m (kgf/cm, ft.lbf) | N.m (kgf/cm, ft.lbf): Specified torque | ||
| * | For use with union nut wrench | • | Non-reusable part |
| Clutch spline grease | * | Precoated part |

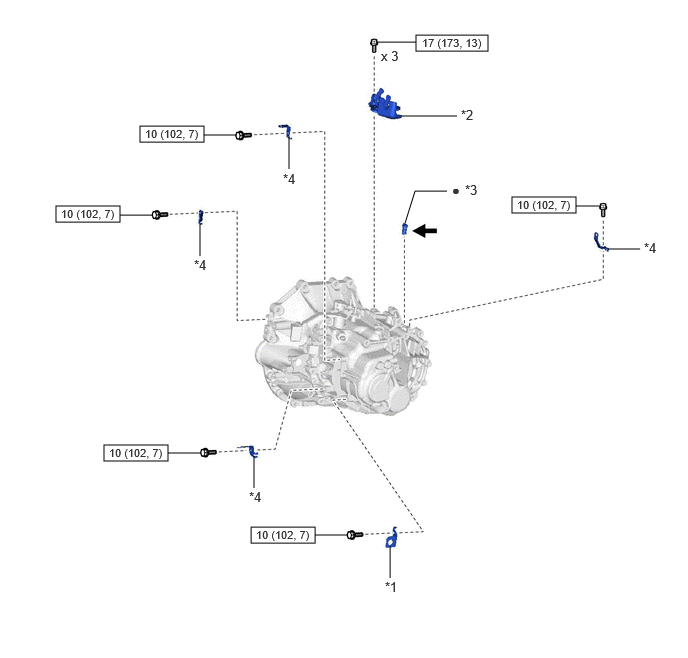

Fig 11: Manual Transaxle Assembly Replacement Components With Torque Specifications [06/2018 - 06/2021] (11 Of 11)
| Callout | Description | Callout | Description |
|---|---|---|---|
| *1 | CLUTCH FLEXIBLE HOSE BRACKET | *2 | CONTROL CABLE BRACKET ASSEMBLY |
| *3 | TRANSMISSION CASE PLUG ASSEMBLY | *4 | WIRE HARNESS CLAMP BRACKET |
| N.m (kgf/cm, ft.lbf): Specified torque | • | Non-reusable part | |
| Gear oil | - | - |
