Replacement [06/2018 - 01/2019]: Procedure

WARNING: This page is about a different car, the 2022 Toyota Corolla, 2021 Toyota Corolla, 2020 Toyota Corolla, and 2019 Toyota Corolla. However, it is still accessible from the selected car via links, so may be relevant.

REMOVE FRONT DRIVE SHAFT ASSEMBLY
Refer to REMOVAL [06/2018 - 01/2019]

REMOVE FRONT DRIVE SHAFT OIL SEAL LH

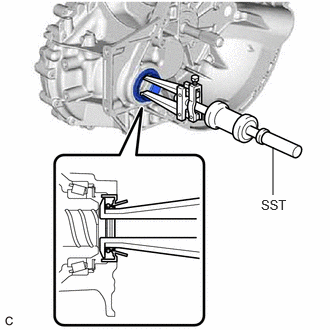

Using SST, remove the front drive shaft oil seal LH from the manual transaxle assembly.

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

SST: 09308-00010

REMOVE FRONT DRIVE SHAFT OIL SEAL RH

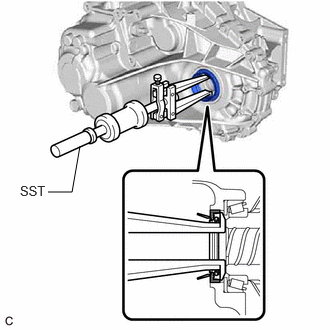

Using SST, remove the front drive shaft oil seal RH from the manual transaxle assembly.

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

SST: 09308-00010

INSTALL FRONT DRIVE SHAFT OIL SEAL RH

Coat the lip of a new front drive shaft oil seal RH with MP grease.

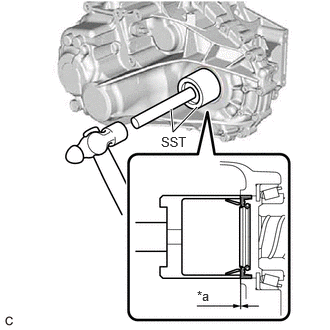

Using SST and a hammer, tap in the front drive shaft oil seal RH to the manual transaxle assembly.

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Depth

SST: 09316-10010
SST: 09950-70010
1. 09951-07100

Standard Depth

-0.5 to 0.5 mm (-0.0197 to 0.0197 in.)

NOTE:

Do not damage the front drive shaft oil seal RH lip.

INSTALL FRONT DRIVE SHAFT OIL SEAL LH

Coat the lip of a new front drive shaft oil seal LH with MP grease.

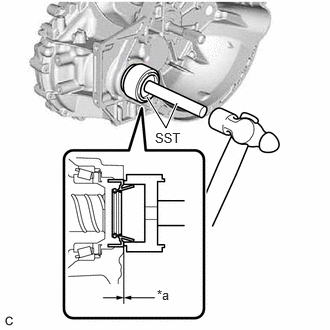

Using SST and a hammer, tap in the front drive shaft oil seal LH to the manual transaxle assembly.

Depth

SST: 09649-17010
SST: 09950-70010
1. 09951-07100

Standard Depth

-0.5 to 0.5 mm (-0.0197 to 0.0197 in.)

NOTE:

Do not damage the front drive shaft oil seal LH lip.

INSTALL FRONT DRIVE SHAFT ASSEMBLY
Refer to INSTALLATION [06/2018 - 01/2019]
