Removal [06/2018 - 11/2022]: Procedure

WARNING: This page is about a different car, the 2022 Toyota Corolla, 2021 Toyota Corolla, 2020 Toyota Corolla, and 2019 Toyota Corolla. However, it is still accessible from the selected car via links, so may be relevant.
  1. REMOVE BACK-UP LIGHT SWITCH ASSEMBLY

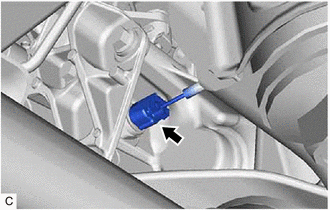

    1. Disconnect the back-up light switch assembly connector.
      GTY869998Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

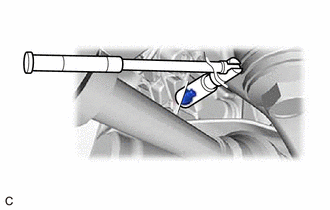

    2. Using a 27 mm deep socket wrench, remove the back-up light switch assembly and gasket from the manual transmission case.
      GTY869999Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
